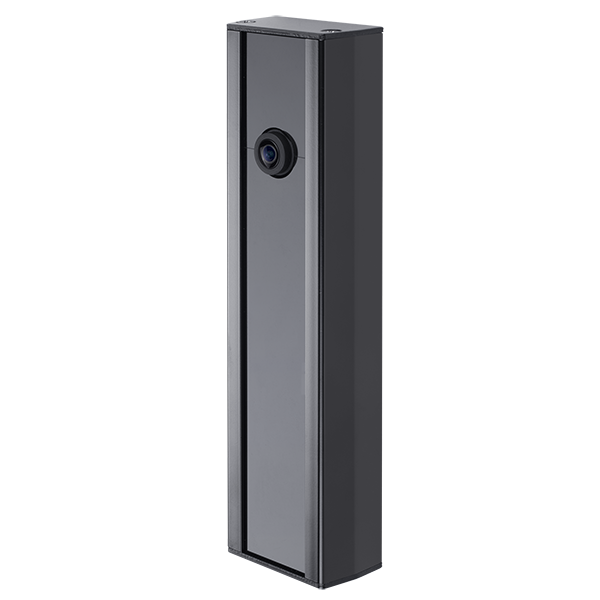

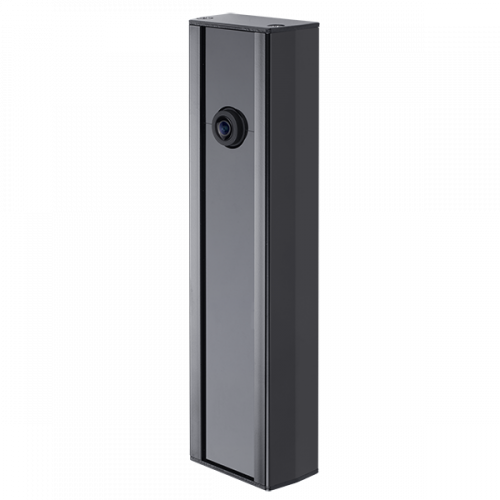

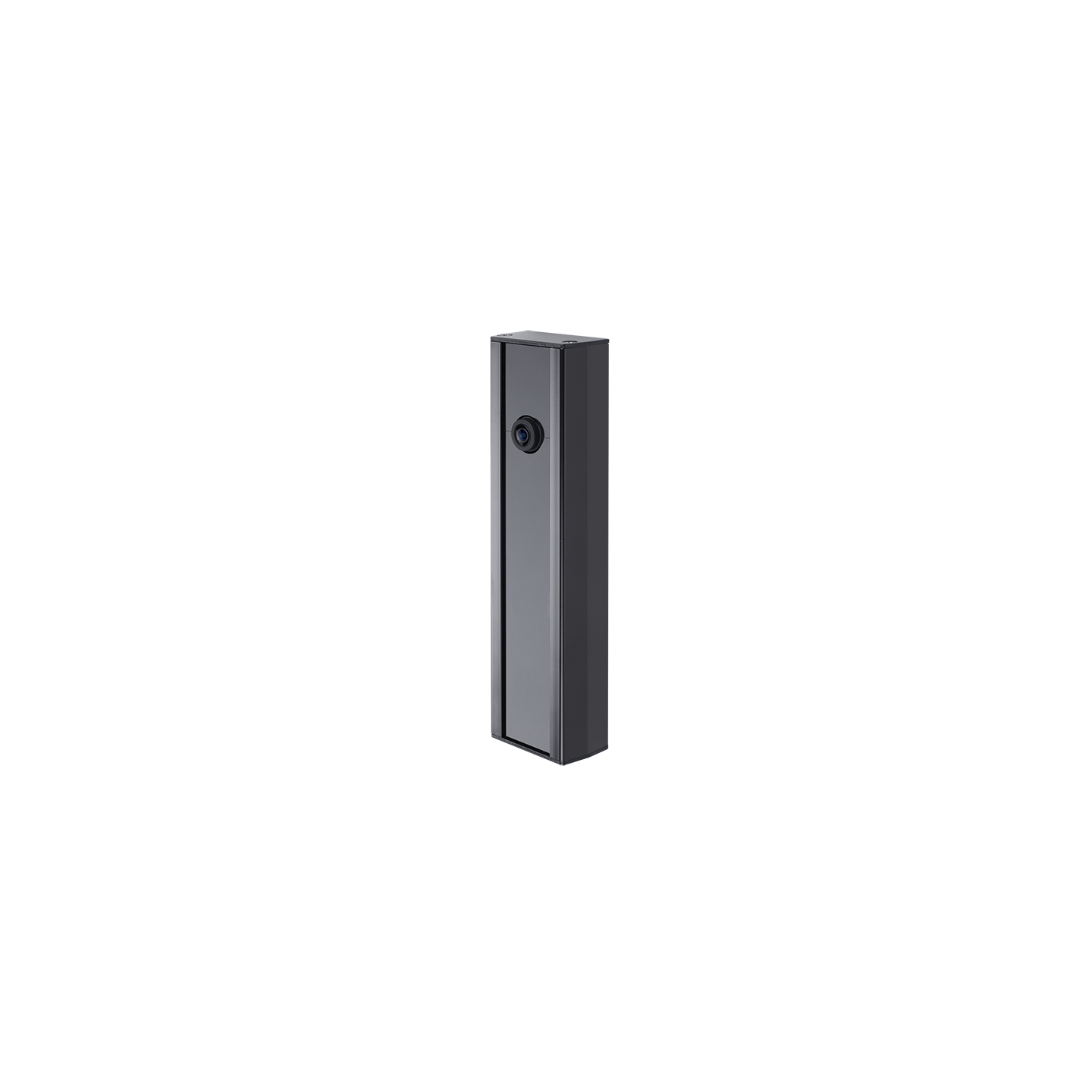

VIVOTEK CC9160-H (DJ)

System Information

CPU

Multimedia SoC (System-on-Chip)

Flash

256 MB

RAM

512 MB

Camera Specifications

Image Sensor

1/2.8" Progressive CMOS

Max. Resolution

1920x1080 (2MP)

Lens Type

Fixed-focal

Focal Length

f = 1.66 mm

Aperture

F1.95

Iris Type

Fixed Iris

Field of View

180° (Horizontal)

100° (Vertical)

180° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

No

Removable IR-cut filter

No

Minimum Illumination

0.03 lux

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage

Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS)

Video

Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 1920x1080

Maximum Streams

3 video streams (Up to 8 configurable profiles)

S/N Ratio

66 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and constrained bit rate control, Smart Stream III

Image Settings

General settings

video title and time stamp overlay, video orientation (flip, mirror), Image settings

Exposure

BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR

Privacy mask

Scheduled profile settings

Network

Users

Live viewing for up to 10 clients

Security

Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface

10Base-T/100 BaseTX Ethernet (RJ-45)

*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

ONVIF

Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Motion Detection (Five-window video motion detection)

Alarm and Event

Event Trigger

camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital input

Event Action

Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output

File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100 Mpbs Network/PoE connection

DI

DO (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af PoE Class 2

Power Consumption

max: 5W

Dimensions

28 x 50 x 184 mm

Weight

199g

Certifications

EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), ICES-003 Issue 7

Safety: UL (UL 62368-1:2nd), CB (IEC/EN 62368-1:2nd), UKCA (BS EN IEC 62368-1: 2014+A11:2017)

IA: BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

Operating Temperature

Starting Temperature: 0°C ~ 45°C (32°F ~113°F)

Working Temperature: -10°C ~ 45°C (14°F ~113°F)

Humidity

90% RH (non-condensing)

System Requirements

Operating System

Microsoft Windows 10/8/7

Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above

Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above

Included Accessories

Packing Contents

Quick installation guide, screw pack

DORI (EN 62676-4 Standard)

Detection (25PPM/ 8PPF)

30.8(m) / 100.9(ft)

Observation (63PPM/ 19PPF)

12.2(m) / 40.1(ft)

Recognition (125PPM/ 38PPF)

5.2(m) / 17.1(ft)

Identification (250PPM/ 76PPF)

2.6(m) / 8.5(ft)
