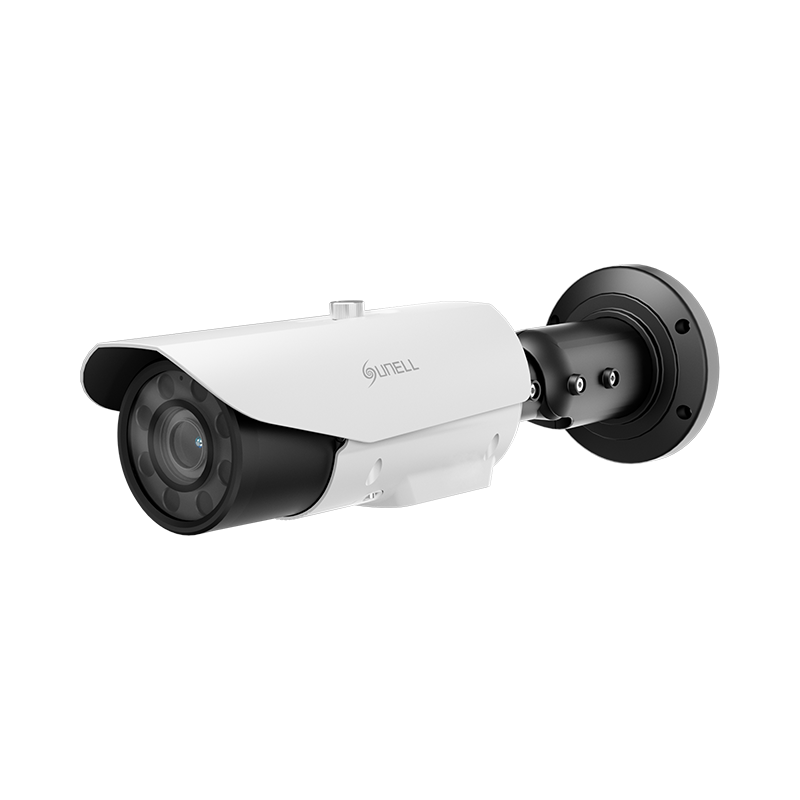

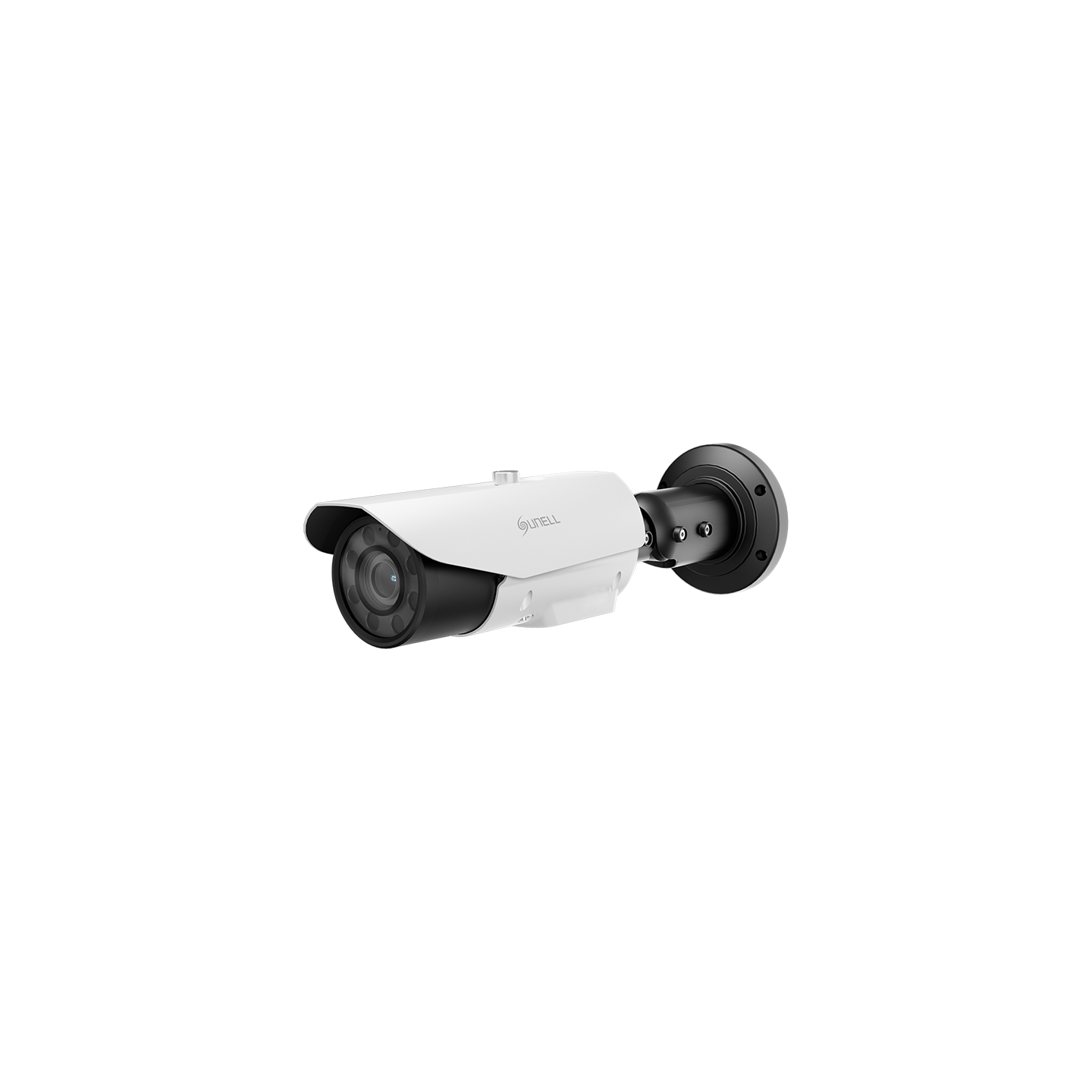

SUNELL SN-IPR8047AKAN-ST-PZ

Camera

Image Sensor

1/1.8” Progressive Scan CMOS

Max. Resolution

4MP, 2688(H) × 1520(V)

Electronic Shutter

Auto/Manual, 1/5 to 1/100,000 s

Min. illumination

Color: 0.0025 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR

Day & Night

IR cut filter

S/N Ratio

55dB

Wide Dynamic Range

True WDR

Angle Adjustment

Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚

Lens

Lens Type

Motorized lens, motorized focus

Iris

Auto Iris

Focal Length

8 to 32 mm, 10 to 50 mm optional

Max. Aperture

F1.6 / F1.3 to F1.4

Field of View (FOV)

8 to 32 mm:

- H: 41.1° to 14°, V: 23° to 7.9°

10 to 50 mm:

- H: 42.5° to 11.1°, V: 24.3° to 6.3°

Illuminator

Supplement Light

IR

Light Control

Auto/Manual

Illumination Distance

8 to 32 mm:

- Up to 80 m (262.5 ft)

10 to 50 mm:

- Up to 120 m (393.7 ft)

IR Wavelength

850 nm

LPR

Vehicle Speed

Up to 120 km/h

Country Region Supported

Middle East: Oman, Saudi Arabia,

Africa: South Africa

Asia-Pacific: China, China Taiwan, Thailand, Vietnam, India, Indonesia

Malaysia, Singapore

Europe: Italy, Netherlands

America: Chile, USA

(Customizable others)

White/Black List

Up to 4,000 records

LPR Smart Search

Support

Intelligent Analytics

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Wrong-way detection, and Smart motion detection

Support alarm triggering by specified target types (vehicle)

Video and Audio

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2688×1520, 1920×1080, 1280×720 @50/60 fps

Stream2: D1, VGA, CIF @ 25/30 fps

Stream3: VGA, CIF, QVGA @ 25/30 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 kbps to 16 Mbps

Stream2: 100 kbps to 6 Mbps

Stream3: 100 kbps to 3 Mbps

Region of Interest

Off/On (8 areas, Rectangle)

Smart Encode

Support

Audio Compression

G.711 A-law, G.711 μ-law, RAM PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, LPR, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Privacy Masking

4 areas

Event

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, Wiegand output, FTP upload, SMTP upload, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone

Support

Built-in Speaker

Support

Audio Interface

1ch Input, 1ch Output

Alarm Interface

1ch Input, 2ch Output

RS-485

1 RS-485

Wiegand Interface

1 Wiegand (26-bit, SHA-1 26-bit, 34-bit, and NEWG 72-bit)

SD Card Slot

Built-in, up to 1 TB

Reset Button

Support

General

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%) / PoE (802.3af)

Power Consumption

Max 13.2 W

Operating Temperature

-40°C to 60°C (-40°F to 140°F )

Operating Humidity

Less than 90% RH

Ingress Protection

IP66, IK10

Certifications

CE-EMC

- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4

FCC 47 CFR Part 15 Subpart B

Casing

Metal

Dimensions

φ110 × 356.3 mm (φ4.33 × 14.03 inch)

Net Weight

1.5 kg (3.31 lb)
