- Micro bolómetro VOx no refrigerado con resolución 256×192
- Térmica: lente fija de 3,5 mm, Visible: lente fija de 4 mm
- Admite detección de personas, vehículos, puntos de fuego y fumadores
- Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, merodeo, sentido contrario, conteo de personas, área de entrada, área de salida
- Admite 3 tipos de reglas de medición de temperatura (Spot, Line, Area)
- Tecnología de procesamiento de imágenes: DVE, 3D DNR, Desempañado, WDR
- Micrófono y altavoz incorporados, admite alarma de luz y sonido
- Distancia IR inteligente de hasta 35 m Soporta alarma de E/S, RS485, ranura para tarjeta SD incorporada
- DC12V/DC24V, fuente de alimentación PoE
Detalle de productos
|
Thermal Camera |
|
|
Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
|
Resolution |
256×192, Image can be scaled up to 704×576 |
|
Pixel Size |
12um |
|
Spectral Range |
8~14um |
|
Thermal Sensitivity (NETD) |
≤ 60mK |
|
Image Setting |
Brightness/Sharpness/Contrast/Mirror/FFC/3D DNR |
|
Color Palettes |
17 (White-hot/Black-hot/Rainbow/Ironbow etc.) |
|
Lens Type |
Fixed, F1.0 |
|
Focus Control |
Free focus |
|
Focal Length |
3.5 mm |
|
Angle of View |
H: 48°, V: 36° |
|
Detection Distance for Humans (1.8×0.5m) |
146m |
|
Detection Distance for Vehicles (4×1.5m) |
447m |
|
Recognition Distance for Human (1.8×0.5m) |
36m |
|
Recognition Distance for Vehicle (4×1.5m) |
112m |
|
Fire Detection Distance for Object (1m×1m) |
146m |
|
Temperature Measurement Distance For Object (1m×1m) |
53m |
|
Visible Camera |
|
|
Image Sensor |
1/2.7" CMOS |
|
Effective Resolution |
2880(H)×1620(V) |
|
Shutter Speed |
1/5 ~ 1/20,000s |
|
Wide Dynamic Range |
True WDR 120dB |
|
Min. Illumination |
Color: 0.001Lux @(F1.2, AGC ON), B/W: 0.0003Lux @(F1.2, AGC ON) |
|
S/N Ratio |
More than 55dB |
|
Focal Length |
4mm |
|
Angle of View |
H: 92°, V: 46° |
|
Illuminator |
|
|
IR Distance |
Up to 35m |
|
White Light |
Strobe light |
|
Video and Audio |
|
|
Frame Rate |
Main Stream: Visible: 2880×1620, 2560×1440, 2304×1296,1920×1080, 1280×720 @25/30fps Thermal: 704×576 @25/30fps Sub Stream: Visible: D1/VGA/640×360/CIF/QVGA @25/30fps Thermal: CIF @25/30fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Main Stream: Visible: 100Kbps~16Mbps, Thermal: 100Kbps~6Mbps Sub Stream: Visible: 100Kbps~6Mbps, Thermal: 10Kbps~6Mbps |
|
Region of Interest |
Off / On (8 Zone, Rectangle) |
|
Mirror |
Support |
|
Defog |
Support |
|
Motion Detection |
Support |
|
Privacy Masking |
Off / On (5 Area, Rectangle) |
|
DVE Image Enhance |
Support |
|
Audio Compression |
G.711: 8kbps, RAW_PCM: 16kbps |
|
Smart Function |
|
|
Smart Function |
Temperature detection, human, vehicle, fire and smoking detection & alarm, |
|
Fire Detection |
Dynamic fire detection, up to 10 fire points detectable. |
|
IVS |
Perimeter, Virtual Fence, Enter Area, Leave Area |
|
Sound-light Alarm |
Support white light flashing and horn warning |
|
Temperature Measurement |
3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (points, areas, line). |
|
Temperature Alarm |
Over temperature alarm |
|
Accuracy |
±2℃ / ±2% |
|
Response Time |
≤ 30ms |
|
Temperature Measurement Range |
-40°C ~ 150°C (-40°F ~ 302°F) |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocols |
IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP ,802.1x |
|
Interoperability |
ONVIF |
|
Max. User Access |
10 Users |
|
Edge Storage |
Local PC for instant recording Micro SD card up to 256GB |
|
Web Viewer |
<IE11, Chrome, Firefox, Microsoft Edge |
|
Web Language |
English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
|
Interface |
|
|
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Audio Interface |
1ch Audio In, 1ch Audio Out Built-in Mic and Speaker |
|
Alarm Interface |
1ch Alarm In, 1ch Alarm Out |
|
RS485 |
Support |
|
HDMI Interface |
Support |
|
Reset Button |
Support |
|
General |
|
|
Power Supply |
DC12V/DC24V/POE (IEEE 802.3af) |
|
Power Consumption |
Max 10W |
|
Working Temperature |
-40°C ~ 60°C (-40°F ~ 140°F) |
|
Storage Conditions |
0 ~ 90% RH |
|
Certifications |
CE /FCC |
|
Ingress Protection |
IP66 |
|
Casing |
Metal |
|
Dimensions |
138 mm × 138 mm × 123 mm (5.43 "×5.43"×4.84 ") |
|
Net Weight |
1.03 Kg (2.27 lb) |

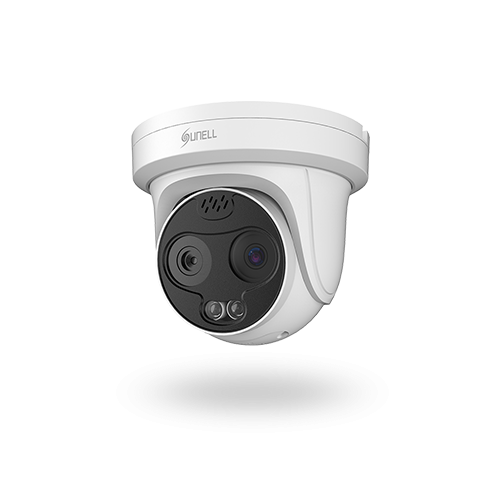

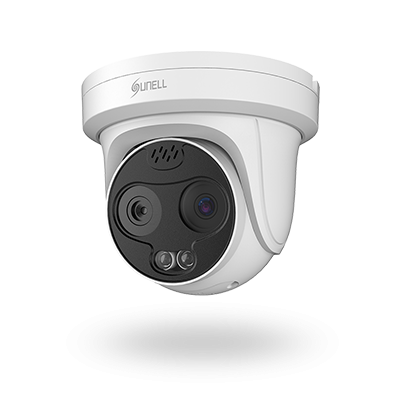

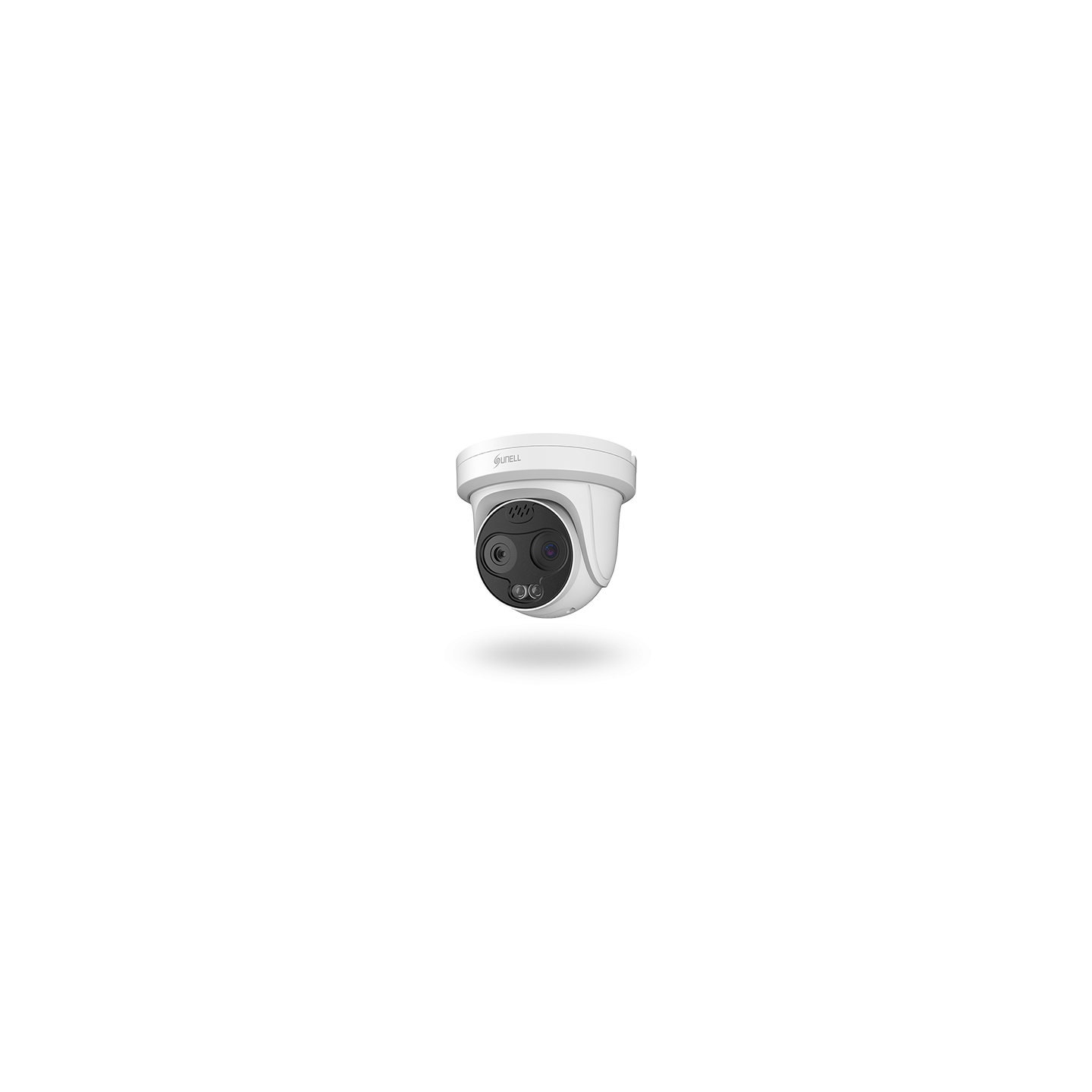

Cámara IP tipo eyeball biespectral
