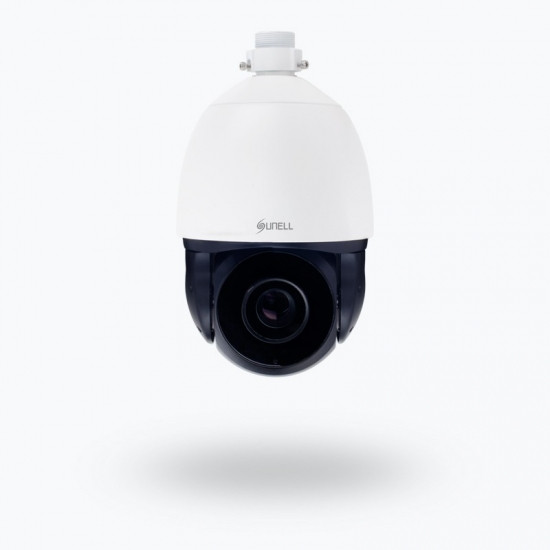

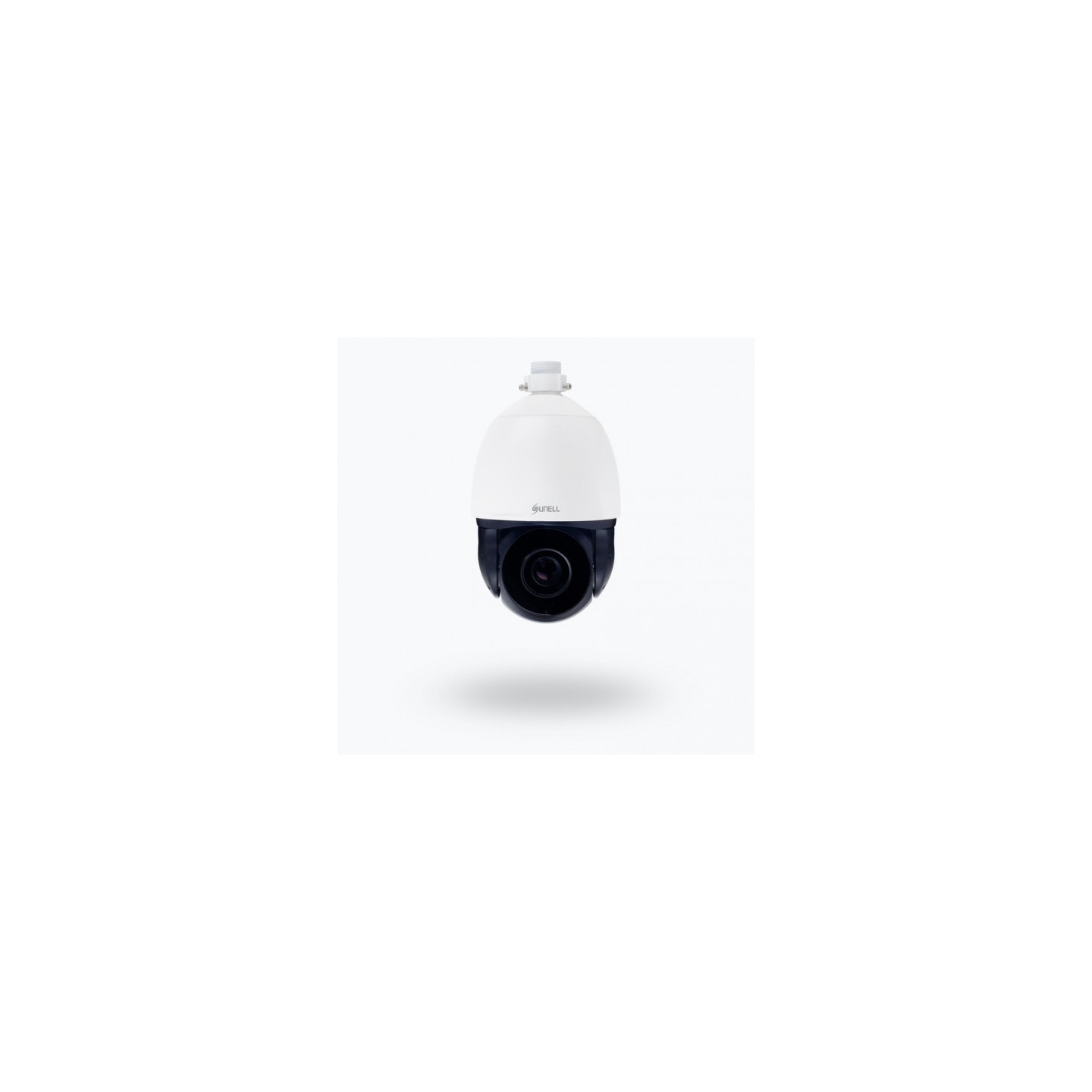

SUNELL SN-IPS57/30MDR/ZSD30

Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Effective Pixels

2048(H)x1536(V)

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color: 0.01 Lux @ (F1.2, AGC ON),

B/W: 0 Lux @ (IR LED ON)

S/N Ratio

55 dB

Day/Night

Auto(ICR)/Day / Night/Timing

Wide Dynamic Range

WDR 120 dB

IR Range

Smart IR, Up to 200 m (656.2 ft)

IR On/Off Control

Auto/Manual

Lens

Focal Length

4.5 ~ 135 mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 59.8° ~ 2.3°

Optical Zoom

30x

Digital Zoom

16x

Focus Control

Auto/Manual

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless, Tilt: -10° ~ +90°

Manual Control Speed

Pan: 0.1° ~ 180°/s, Tilt: 0.1° ~ 90°/s

Preset Speed

Pan: 180°/s, Tilt: 90°/s

Presets

400

PTZ Mode

6 Track, 12 Tour, 12 Scan,

Speed Setup

Auto/Manual (0-8)

Power up Action

Support

Idle Motion

Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period

Video

Max. Resolution

3MP (2048×1536)

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2048×1536/1920×1080/1280×720 @25/30fps

Stream2: D1/VGA/640×360/CIF/QVGA @ 25/30fps

Stream3: VGA/CIF/QVGA @ 25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200kbps~12Mbps

Stream2: 100kbps~6Mbps

Stream3: 100kbps~3Mbps

Image Enhancement

HLC/BLC/Anti-shake/Defog /WDR

Noise Reduction

2D/3D DNR

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Audio Compression

G.711, RAW_PCM

Bit Rate

8kbps(G.711), 16kps(RAW_PCM)

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

Local PC for instant recording, Micro SD card 256GB

Web Viewer

<IE11, Chrome, Firefox

Management Software

SunView

Intelligence

Auto Tracking

Support

IVS

Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

1ch Input, 1ch Output

Alarm

7ch Input, 2ch Output

RS485

Support

CVBS Output

Support

Reset Button

Yes (Built-in)

Electrical

Power Supply

AC24V/Hi-POE (Adapter optional)

Power Consumption

Less than 40 W

Operating Temperature

Starting Temperature: -40°C ~ 60°C (-40°F ~ 140 °F)

Working Temperature:-55°C ~ 60°C (-67°F ~ 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP66, TVS4000V

Certifications

CE/FCC

Casing

Metal

Dimensions

Φ226 × 362.8 mm (Φ8.9 × 14.28 inch )

Net Weight

5.2 kg (11.46 lb)
