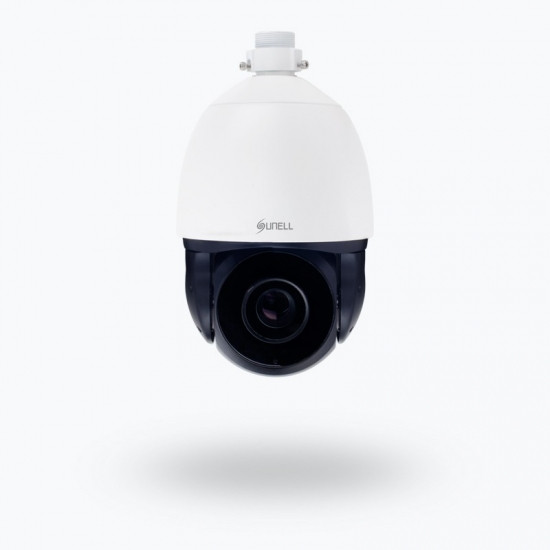

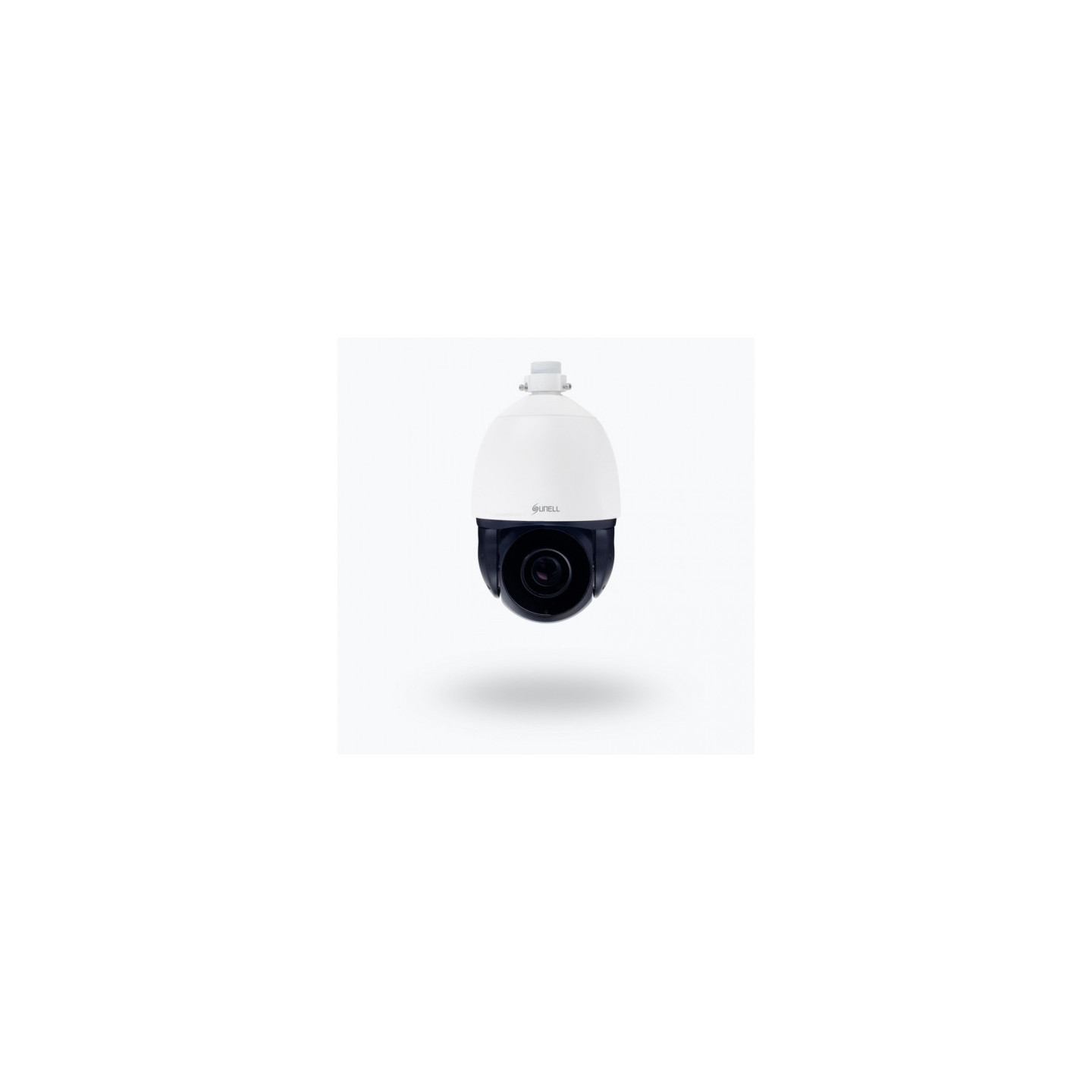

SUNELL SN-IPS57/30MDL/ZSD30
    SUNELL

    SUNELL SN-IPS57/30MDL/ZSD30

    Cámara PTZ Láser, zoom óptico 30X, IR 400m, IP66

    Contáctenos acerca de este producto

    Contacto de SUNELL SN-IPS57/30MDL/ZSD30

    • CMOS de escaneo progresivo de 1/2,8"
    • Zoom óptico de 30x, zoom digital de 16x
    • 3 MP (2048 × 1536) a 25/30 fps
    • Múltiples transmisiones
    • 3D DNR, WDR, ICR, IVS, desempañado
    • Seguimiento automático
    • Alcance IR inteligente de hasta 400 m
    • IP66

    Detalle de productos

    Camera

    Image Sensor 1/2.8” Progressive Scan CMOS

    Effective Pixels 2048(H)x1536(V)

    Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s

    Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON),

    B/W: 0 Lux @ (IR LED ON)

    S/N Ratio 55 dB

    Day/Night Auto(ICR)/Day / Night/Timing

    Wide Dynamic Range WDR 120 dB

    IR Range Smart IR, Up to 400 m (1312.34 ft)

    IR On/Off Control Auto/Manual

    Lens

    Focal Length 4.5 ~ 135 mm

    Max. Aperture F1.6 ~ F4.4

    Angle of View H: 59.8° ~ 2.3°

    Optical Zoom 30x

    Digital Zoom 16x

    Focus Control Auto/Manual

    PTZ

    Pan/Tilt Range Pan: 0° ~ 360° endless, Tilt: -10° ~ +90°

    Manual Control

    Speed Pan: 0.1° ~ 180°/s, Tilt: 0.1° ~ 90°/s

    Preset Speed Pan: 180°/s, Tilt: 90°/s

    Presets 400

    PTZ Mode 6 Track, 12 Scan, 12 Tour (up to 32 presets per tour)

    3D Positioning Support

    Power-Off Memory Support

    PTZ Status Display Support

    Idle Motion Activate Preset/ Scan/ Tour/ Track if there is no

    command in the specified period

    Video

    Streaming Capability 3 Streams

    Stream/Frame Rate

    Stream1: 2048×1536/1920×1080/1280×720 @25/30fps

    Stream2: D1/VGA/640×360/CIF/QVGA @ 25/30fps

    Stream3: VGA/CIF/QVGA @ 25/30fps

    Bit Rate Control CBR/VBR

    Bit Rate

    Stream1: 200kbps~12Mbps

    Stream2: 100kbps~6Mbps

    Stream3: 100kbps~3Mbps

    Image Enhancement HLC/BLC/Anti-shake/Defog /WDR

    Noise Reduction 2D/3D DNR

    Region of Interest Off/On (8 Zone, Rectangle)

    Motion Detection Support

    Privacy Masking Off/On (4 Area, Rectangle)

    Audio

    Audio Compression G.711, RAW_PCM

    Bit Rate 8kbps(G.711), 16kps(RAW_PCM)

    Network

    Protocols

    IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP,

    RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,

    UPnP, FTP, ARP, SNMP

    Interoperability ONVIF, SDK, CGI

    Streaming Method Unicast

    Max. User Access 10 Users

    Edge Storage Local PC for instant recording, Micro SD card 256GB

    Web Viewer <IE11, Chrome, Firefox, Microsoft Edge

    Management

    Software SunView

    Intelligence

    Auto Tracking Support

    IVS

    Perimeter, Single Virtual Fence, Double Virtual Fences,

    Loiter, Multi Loiter, Object Left, Object Removed,

    Abnormal Speed, Converse, Illegal Parking, Signal Bad

    Interface

    Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector

    Audio 1ch Input, 1ch Output

    Alarm 7ch Input, 2ch Output

    RS485 Support

    CVBS Output Support

    Reset Button Yes (Built-in)

    Electrical

    Power Supply AC24V/Hi-POE (Adapter optional)

    Power Consumption Less than 40 W

    Operating

    Temperature

    Starting Temperature: -40°C ~ 60°C (-40°F ~ 140 °F)

    Working Temperature:-55°C ~ 60°C (-67°F ~ 140 °F)

    Operating Humidity Less than 90% RH

    Ingress Protection IP66, TVS4000V

    Certifications CE/FCC

    Casing Metal

    Dimensions Φ226 × 362.8 mm (Φ8.9 × 14.28 inch )

    Net Weight 5.2 kg (11.46 lb)
