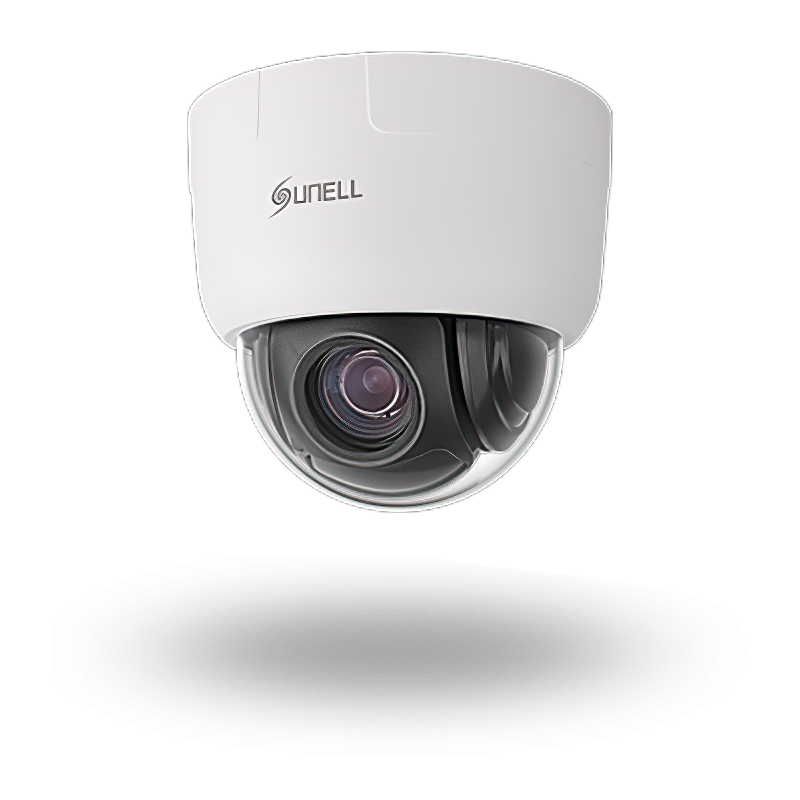

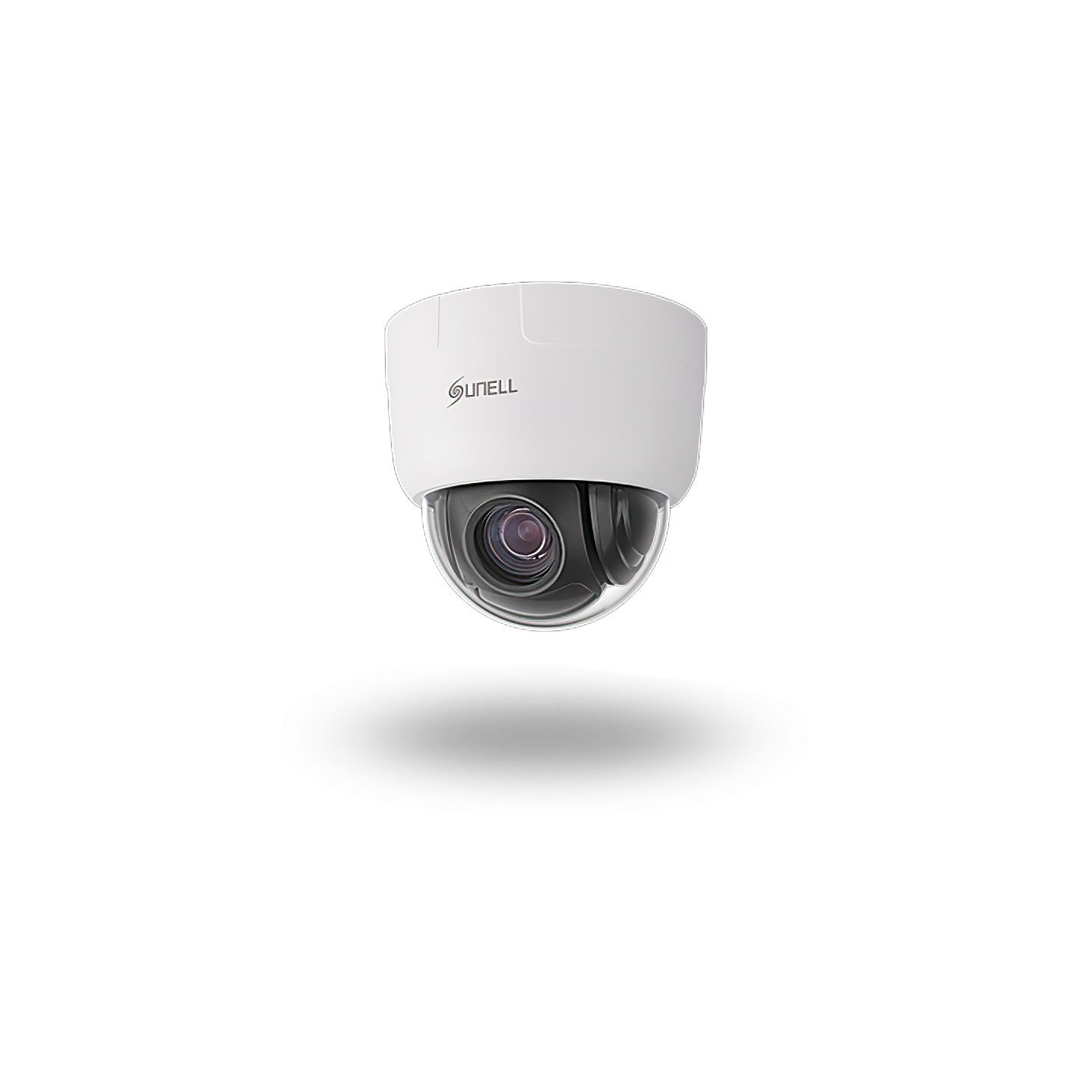

SUNELL SN-IPS5940ELDN-Z12

Camera

Image Sensor 1/2.8” Progressive Scan CMOS

Max Resolution 2592(H) x 1520(V)

Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination Color: 0.01 Lux @ (F1.6, AGC ON),

B/W: 0.001 Lux @ (F1.6, AGC ON)

Day & Night Auto (ICR)

IR Distance N/A

IR On/Off Control N/A

Lens

Focal Length 4.7 ~ 56.4 mm

Max. Aperture F1.6 ~ F3.0

Angle of View H: 60.9°~6.43°, V: 40.1°~4.1°

Optical Zoom 12x

Digital Zoom 16x

Focus Control Auto/Manual/Semi-automatic

PTZ

Pan/Tilt Range Pan: 0° ~ 360° endless, Tilt: 0° ~ +90°

Manual Control

Speed Pan: 0.1° ~ 200°/s, Tilt: 0.1° ~ 160°/s

Preset Speed Pan: 200°/s, Tilt: 160°/s

Presets 300

PTZ Mode 6 Track, 12 Scan, 12 Tour (up to 32 presets per tour)

3D Positioning Support

Power-Off Memory Support

PTZ Status Display Support

Idle Motion Activate Preset/ Scan/ Tour/ Track if there is no

command in the specified period

Video

Streaming Capability 3 Streams

Stream/Frame Rate

Stream1: 2592×1520, 2560×1440, 2304×1296,

1920×1080, 1280×720 @ 25/30fps

Stream2: D1, VGA, 640×360, CIF, QVGA @ 25/30fps

Stream3: VGA, CIF, QVGA @ 25/30fps

Bit Rate Control CBR/VBR

Bit Rate

Stream1: 200kbps~12Mbps

Stream2: 100kbps~6Mbps

Stream3: 100kbps~3Mbps

Smart Encoder Support

Region of Interest

(ROI) Support


Image Adjustment Brightness, Sharpness, Contrast, Saturation adjustable

Mirror Support

White Balance Auto/Manual

Day/Night Setting Auto, Day, Night

Noise Reduction 2D/3D DNR

Image Enhancement HLC, BLC, Defog

Wide Dynamic Range True WDR 120 dB

S/N Ratio 55dB

Motion Detection Support

Privacy Masking Support

Smart Function

Smart Event

Intrusion, Single line crossing, Double line crossing,

Loitering, Loitering, Object Left, Object Removed,

Abnormal Speed, Wrong way, Illegal Parking

Auto Tracking Support

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP,

RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,

UPnP, FTP, ARP, SNMP

Interoperability ONVIF, SDK, CGI

Streaming Method Unicast

Max. User Access 10 Users

Edge Storage Local PC for instant recording

Web Viewer <IE11, Chrome, Firefox, Microsoft Edge

Language English, Chinese, Polish, Italian, Portuguese, Spanish,

Russian, French, Czech, Hungarian. Default: English

Interface

Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface -

Alarm Interface -

RS485 -

CVBS Output -

Reset Button Yes (Built-in)

Electrical

Power Supply DC12V/POE (IEEE 802.af)

Power Consumption Less than 6 W

Operating

Temperature -20°C ~ 50°C (-4°F ~ 122 °F)

Operating Humidity Less than 90% RH

Ingress Protection IP66, IK10, TVS4000V

Certifications CE/FCC

Dimensions φ143.5×130.6mm (φ5.65×5.14 inch)

Net Weight 1.15kg
