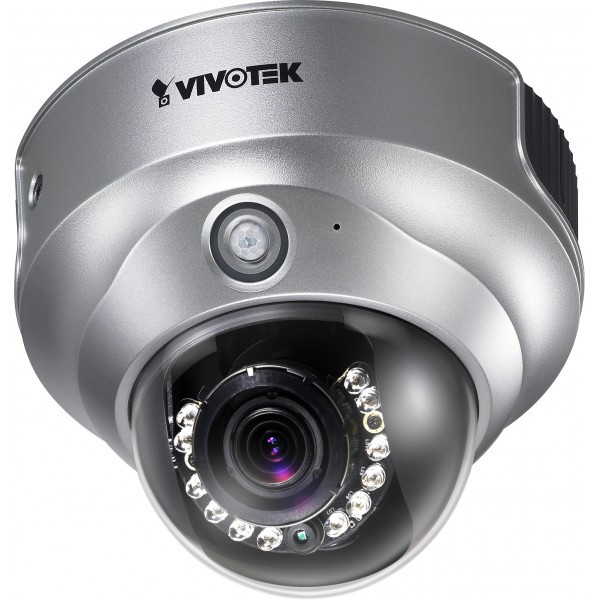

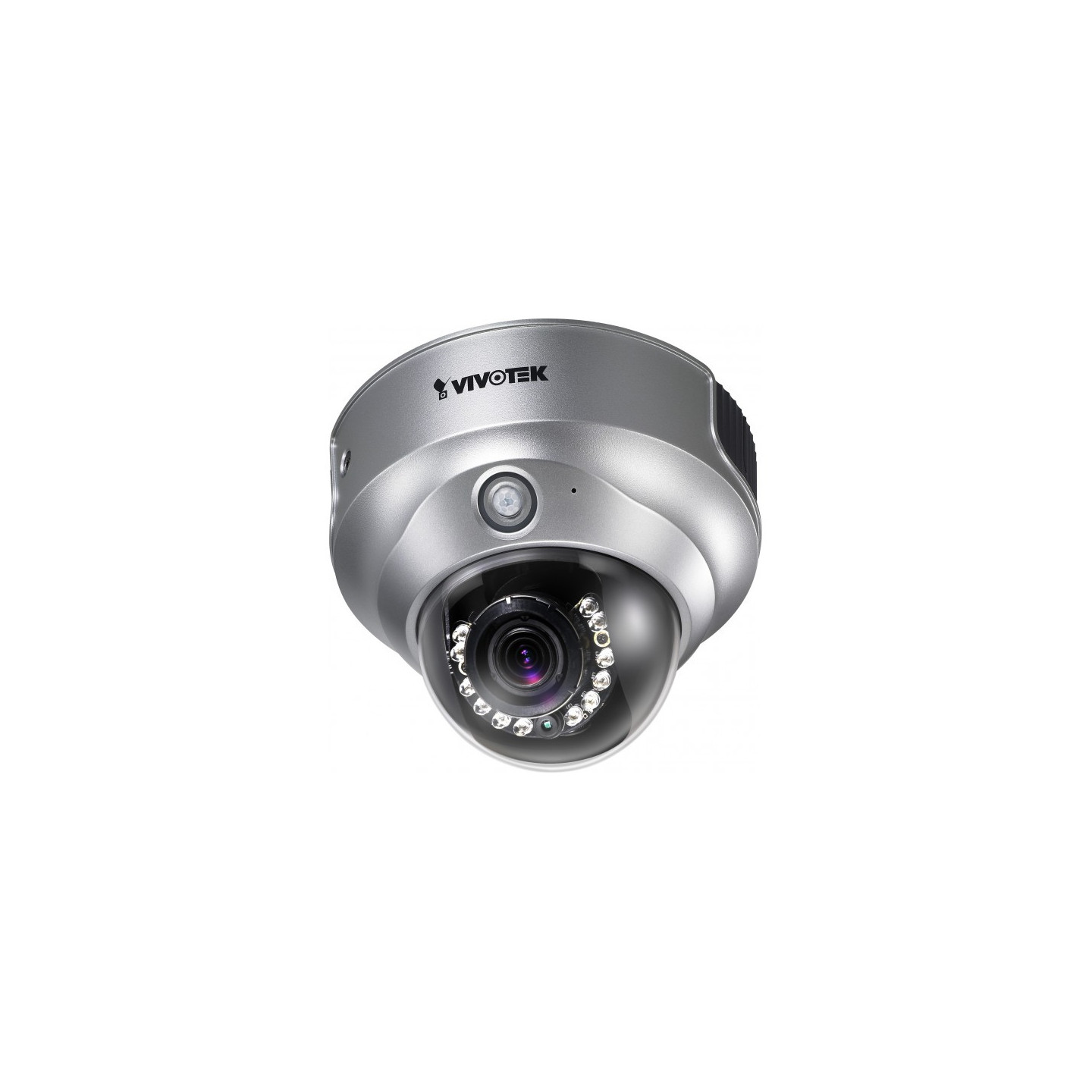

VIVOTEK FD8161

Lente

f=3 ~ 9 mm

F 1.2 (wide)

F 2.1 (tele)

Auto iris

Board lens

Vari-focal

Removable IR-cut filter for day & night function

Campo de visión

31.7° ~ 93.0° (horizontal)

23.8° ~ 68.4° (vertical)

Tiempo de obturación

1/5 ~ 1/40,000 sec.

Sensor de imaggen

1/3.2" CMOS in 1600x1200 Resolution

Iluminación mínima

0.1 Lux @ F1.2 (Color)

0.001 Lux @ F1.2 (B/W)

Iluminadores IR

IR LED*12

Built-in IR illuminators, Effective up to 15 meters

Video

Compression: H.264, MPEG-4 & MJPEG

Streaming:

Simultaneous multiple streams

H.264 streaming over UDP, TCP, HTTP or HTTPS

H.264/MPEG-4 multicast streaming

MPEG-4 streaming over UDP, TCP, HTTP or HTTPS

MPEG-4 multicast streaming

MJPEG streaming over HTTP or HTTPS

Supports activity adaptive streaming for dynamic frame rate control

Supports video cropping for bandwidth efficiency

Supports ePTZ for data efficiency

Supports 3GPP mobile surveillance

Frame rates:

H.264: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200

MPEG-4: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200

MJPEG: Up to 30 fps at 1280x720

, Up to 15 fps at 1600x1200

Interface:

Audio/Video output

NTSC/PAL video output switch

Configuración de imagen

Adjustable image size, quality, and bit rate

Time stamp and text caption overlay

Flip & mirror

Configurable brightness, contrast, saturation, sharpness, white balance and exposure control

AGC AWB AES

Automatic, manual or scheduled day/night mode

Supports privacy masks

BLC (Backlight compensation)

Audio

Compression

GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps

MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps

G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law

Interface:

Built-in microphone

External microphone input

Audio output

External/Internal microphone switch

Supports two-way audio

Supports audio mute

Red

10/100 Mbps Ethernet, RJ-45

ONVIF support

Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X

Alarma y gestión de eventos

Triple-window video motion detection

1 D/I & 1 D/O for external sensor and alarm

Event notification using HTTP, SMTP, FTP

Local recording of MP4 files

Tamper Detection

PIR (Passive Infrared Sensor) for human detection

Almacenamiento a bordo

SD/SDHC card slot

Stores snapshots and video clips

Seguridad

Multi-level user access with password protection

IP address filtering

HTTPS encrypted data transmission

802.1X port-based authentication for network protection

Usuarios

Live viewing for up to 10 clients

Dimensiones

Ø: 155mm x 116 mm

Peso

Net: 697 g

Indicador LED

System power and status indicator

System activity and network link indicator

Potencia

12V DC

Power consumption: Max. 6.5 W

802.3af Power-over-Ethernet (Class 1)

Aprobaciones

CE C-Tick FCC LVD VCCI

Ambientes de operación

Temperatura: 0 ~ 50 °C (32 ~ 122 °F )

Humedad: 90%

Viendo requisitos del sistema

OS: Microsoft Windows 7 / Vista / XP / 2000

Browser: Mozilla Firefox

Browser: Internet Explorer 7.x or above

VLC: 10.5 or above

QuickTime: 6.5 or above

Cell phone: 3GPP player

Real Player 10.5 or above

Gestión de instalación y mantenimiento

3-axis mechanism for flexible ceiling and wall mount installation

Camera angle adjustment:

Pan range: 350°

Tilt range: 85°

Rotate range: 350°

Installation Wizard 2

ST7501 32-channel recording software

Supports firmware upgrade

Aplicaciones

SDK disponible para desarrollo de aplicaciones e integración de sistema

Garantía

24 Meses
