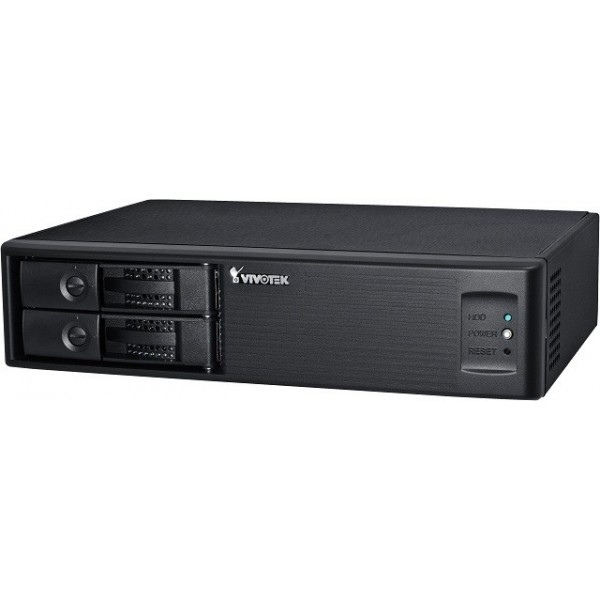

VIVOTEK ND8301 NVR 8 Cámaras IP 2 Bahías

    VIVOTEK ND8301 NVR 8 Cámaras IP 2 Bahías

    La ND8301 de VIVOTEK es una Grabadora de vídeo para red de 8 canales proyectado para aplicaciones sofisticadas de grabación. Esta grabadora está equipada con un Procesador Intel Atom Dual-core con una velocidad de grabación máxima con robustos 96 Mbps.

    Contáctenos acerca de este producto

    Contacto de VIVOTEK ND8301 NVR 8 Cámaras IP 2 Bahías

    Características - Hardware

    • Procesador Dual-core Intel AtomTM
    • RAID 0,1 para una grabación eficiente y confiable
    • Bandeja con 2 compartimientos para discos duros amovibles, máx. 6TB
    • Interfaz eSATA externa
    • Pantalla local completa para visualización en Full HD
    • Diseño de la NVR tipo desktop standalone
    • Puertos Ethernet Dual Gigabit
    • 4 puertos USB
    • Tamaño compacto: 315 mm (A) x 220 mm (P) x 75 mm (A)



    Características - Software

    • Fácil instalación y configuración (Shepherd/Setup Wizard)
    • VAST instalado (LiveClient/Playback)
    • Visualización en vivo en tiempo real de 8 canales y Reproducción sincronizada de 4 canales
    • SVC/H.264, MPEG-4 y MJPEG
    • Múltiples tipos de grabación y fuentes del accionador de eventos
    • Múltiples modos de búsqueda de vídeo
    • E-map
    • Soportado por software de administración central VAST
    • Integración completa con cámaras para red VIVOTEK
    • Soporte para VIVOTEK iViewer (iOS/Android)

    Detalle de productos

    System

    CPU: Dual-core Intel® processor

    RAM: 2GB DDRIII

    OS: Windows 7 embedded

    Power Restoration: System restart automatically after Power Recovery

    System Recovery: Recover operating system after restart every time

    channels

    8-CH selectable

    Storage

    2 x 3.5" HDD, up to 8TB

    2 x hot-swappable hard disk tray

    HDD S.M.A.R.T.(Self-Monitoring Analysis and Reporting Technology)

    RAID 0, 1

    External eSATA storage

    Connectors

    1 x VGA for Full HD local display

    2 x Gigabit RJ45 Ethernet port

    4 x USB 2.0 port

    1 x RS232

    1 x eSATA

    1 x MIC in and line in

    1 x line out

    Camera Compatibility

    Integrates with VIVOTEK & ONVIF network cameras

    EasySetup

    "Setup Wizard" for network/HDD/camera easy setup

    "IW2" for search internal camera

    "Shepherd" for duplicating the camera's configuration to multiple cameras

    Networking

    IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS

    Recording

    Throughput: Max. 96 Mbps

    Recording policy: scheduled (event/continuous modes) and manual recording

    Video compression: H.264/MJPEG/MPEG-4

    Audio compression: AMR/G.711/G.726/AAC

    Resolution: Up to 5-Megapixel recording

    Format: 3GP

    Auto recycling: buffer size setting, time setting

    Activity adaptive recording

    Export

    Format: AVI/3GPP/EXE

    LiveView (Local Display)

    Display layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12

    Rotate

    Snapshot

    Two way audio control

    PiP video control

    Stream selectable

    Set DO control

    Video enhancement

    Pan/Tilt/Zoom control of VIVOTEK cameras

    Preset location

    Auto pan/patrol

    Event popup windows

    Instant event notification

    Display performance:

    MJPEG: 16-CH, 30 fps @ CIF

    MPEG4: 16-CH, 30 fps @ CIF or 2-CH, 30 fps @ 1080P

    H.264: 7-CH, 30 fps @ CIF or 1-CH, 30 fps @ 1080P

    Auto stream size

    Playback (Local Display)

    Display layout: 1X1

    Playback mode: play, pause, stop, next/frame, next/previous, speed control

    Search mode: browsing, time, event, bookmark

    Graphical timeline

    Snapshot

    Bookmark design

    PiP video control

    Video enhancement

    Log viewer

    LiveView (Remote)

    Display layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12

    Snapshot

    Pan/Tilt/Zoom control of VIVOTEK cameras

    Simple camera and recording settings

    Playback (Remote)

    Display layout: 1X1

    Playback mode: play, pause, stop, speed control

    Search mode: browsing, event

    Graphical timeline

    Event Action Management

    Trigger source: motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status

    Actions: email, start recording, move to the preset position, set DO, GSM short message & send CGI command

    Security

    5 levels of user roles

    Multi-level user access with password protection

    Device buzzer notification (HDD/network)

    Backup

    Manual/scheduled backup

    Mobile APP Support

    VIVOTEK iViewer (iOS/Android)

    Dimensions

    315 mm (W) X 220 mm (D) X 75 mm (H)

    Weight

    Net: 2270g without HHD

    LED Indicator

    1 x power status

    1 x HDD status

    Approvals

    CE, FCC Class B, VCCI, C-Tick

    Operating Environments

    Temperature: 0°C ~ 40°C ( 32°F ~ 122°F )

    Humidity: 20%~95% RH

    Warranty

    24 months

    Language Support

    English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portugal, Czech
