SUNELL SN-IPS8652PCDN(-K)-Z15-SS
    SUNELL

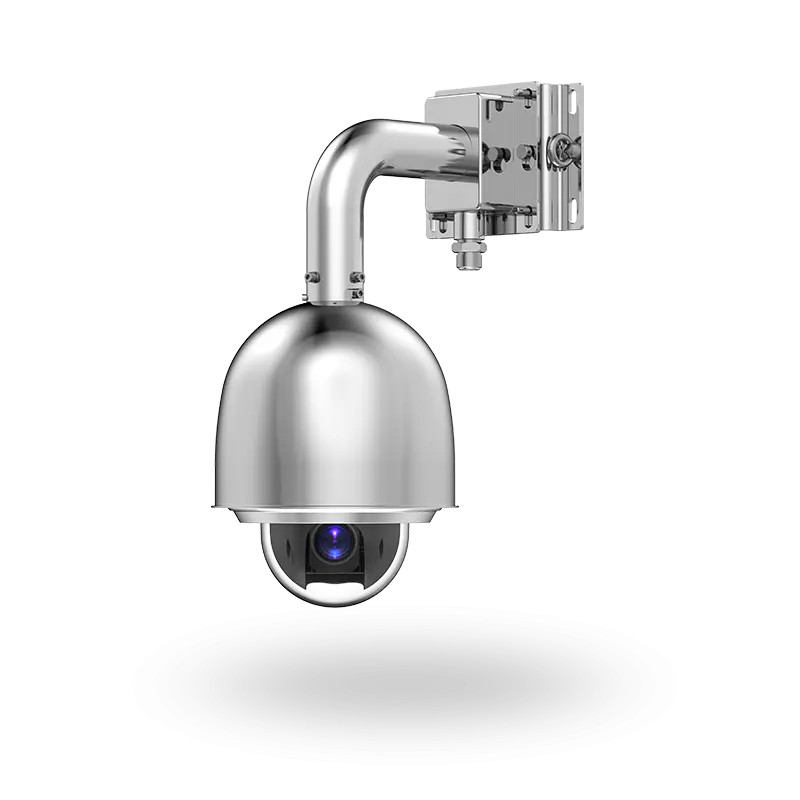

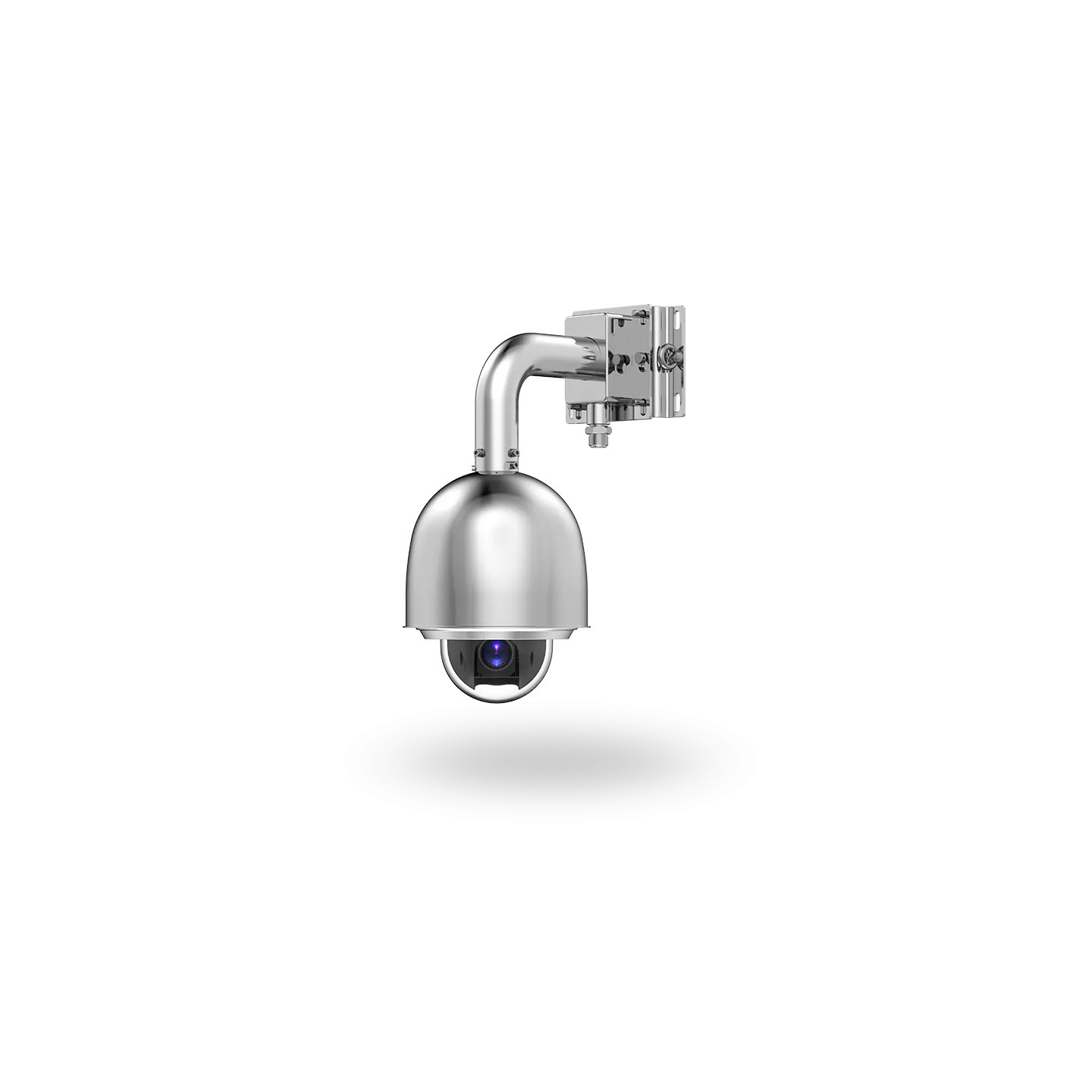

    SUNELL SN-IPS8652PCDN(-K)-Z15-SS

    Cámara IP Speed Dome Antiexplosiva de 5MP y 15X zoom óptico

    Contáctenos por este producto

    Contacto de SUNELL SN-IPS8652PCDN(-K)-Z15-SS

    • CMOS STARVIS™ de 1/2.8" y 5 MP
    • Zoom óptico de 15 aumentos, zoom digital de 16 aumentos
    • Admite detección y captura de rostros, personas y vehículos, así como detección de humo y llamas.
    • Análisis inteligente: intrusión, cruce de línea simple, cruce de línea doble, merodeo, sentido contrario, estacionamiento ilegal y conteo de personas.
    • WDR real, DNR 3D, ICR, desempañador y antivibración
    • -K: Compatible con interfaz de fibra óptica
    • Carcasa de acero inoxidable 316L, resistencia al agua IP68
    • ATEX: II 2 G Ex db op is IIC T6 Gb, Ex II 2 D Ex tb op is IIIC T80 °C Db

    Detalle de productos

    Camera

    Image Sensor

    1/2.8”Progressive Scan CMOS

    Max. Resolution

    5MP, 2592(H) × 1944(V)

    Electronic Shutter

    Auto/Manual, 1/5 to 1/20,000s

    Min. illumination

    Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)

    Day & Night

    Auto (ICR)

    Wide Dynamic Range

    True WDR

    Lens

    Focal Length

    5.3 to 79.5 mm, 15x Optical Zoom

    Max. Aperture

    F1.6 to F2.8

    Angle of View

    H: 56.2° to 4.5°, V: 42.3° to 3.3°

    Zoom Speed

    Approx. 2.5 s

    Digital Zoom

    16x

    Iris Control

    Auto/Manual

    Focus Control

    Auto/Manual/Semi-automatic

    DORI

    DORI Distance (Detection)

    104 to 1,560 m (341.21 to 5,118.11 ft)

    DORI Distance (Observe)

    41.6 to 624 m (136.48 to 2,047.24 ft)

    DORI Distance (Recognize)

    20.8 to 312 m (68.24 to 1,023.62 ft)

    DORI Distance (Identify)

    10.4 to 156 m (34.12 to 511.81 ft)

    DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered   area. The numbers in this table do not reflect intelligent function distances.

    Intelligent Analytics

    Multi-Object Detection

    Support face, human, vehicle detection and capture

    Smoke and Flame Detection

    Support

    Intelligent Analysis

    Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart Motion   Detection

    (support the accurate detection of vehicle and human)

    People Counting

    Support

    Smart Tracking

    Support

    Video and Audio

    Streaming Capability

    3 Streams

    Stream/Frame Rate

    Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps

    Stream2: D1, VGA, CIF @25/30fps

    Stream3: VGA, CIF, QVGA @25/30fps

    Bit Rate Control

    CBR/VBR

    Bit Rate

    Stream1: 200 kbps to 12 Mbps

    Stream2: 100 kbps to 6 Mbps

    Stream3: 100 kbps to 3 Mbps

    Smart Encoder

    Support

    Region of Interest (ROI)

    Support


    Image Adjustment

    Brightness, Sharpness, Contrast, Saturation adjustable

    Scene Setting

    Indoor, Outdoor, Mirror

    Exposure Mode

    Auto, Manual, Shutter priority, Iris priority

    White Balance

    Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

    Day/Night Setting

    Auto, Day, Night, Timer

    Noise Reduction

    2D/3D DNR

    Image Enhancement

    HLC, BLC, Defog, WDR, Anti-shake

    Privacy Masking

    Support 40 zones, mask color configurable

    PTZ

    Pan/Tilt Range

    Pan: 0° to 360° endless, Tilt: 0° to +90° (auto-flip)

    Pan Speed

    Pan speed: 0.1° to 200°/s, preset speed: 200°/s

    Tilt Speed

    Tilt speed: 0.1° to 160°/s, preset speed: 160°/s

    Presets

    300

    Patrol Scan

    6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol)

    Power-Off Memory

    Support

    3D Positioning

    Support

    PTZ Status Display

    Support

    Idle Motion

    The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be   run.

    Event

    Alarm Triggers

    IVS, Motion detection, Network alarm, Disk alarm

    Alarm Events

    Alarm record, FTP upload, SMTP upload

    Network

    Protocols

    IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

    Interoperability

    ONVIF (Profile S/T/G/M), SDK, CGI

    User/Host Level

    Up to 10 users, 3 levels: Administrator, Operator, Media user

    Security

    IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

    Web Viewer

    <IE11, Chrome, Firefox, Microsoft Edge

    Interface

    Network Interface

    1 Ethernet (10/100 Base-T) RJ-45 Connector

    Fiber Optical

    -K: 1 single module fiber interface

    SD Card Slot

    Built-in, up to 256GB

    Reset Button

    Support

    General

    Language

    English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

    Power Supply

    100 to 240VAC

    Power Consumption

    Less than 15W

    Operating Temperature

    -20°C to 60°C (-4°F to 140 °F)

    Operating Humidity

    Less than 90% RH

    Ingress Protection

    IP68

    Certifications

    CE-EMC (EN 55032:2015+A1:2020, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A12021, EN 61000-3-3:2013+A2:2021, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014)

    FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014)

    ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80°C Db;

    IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

    Material

    SUS316L

    Dimensions

    φ238 × 386 mm (φ9.37 × 15.2 inch)

    Net Weight

    15 Kg (33.07 lb)
