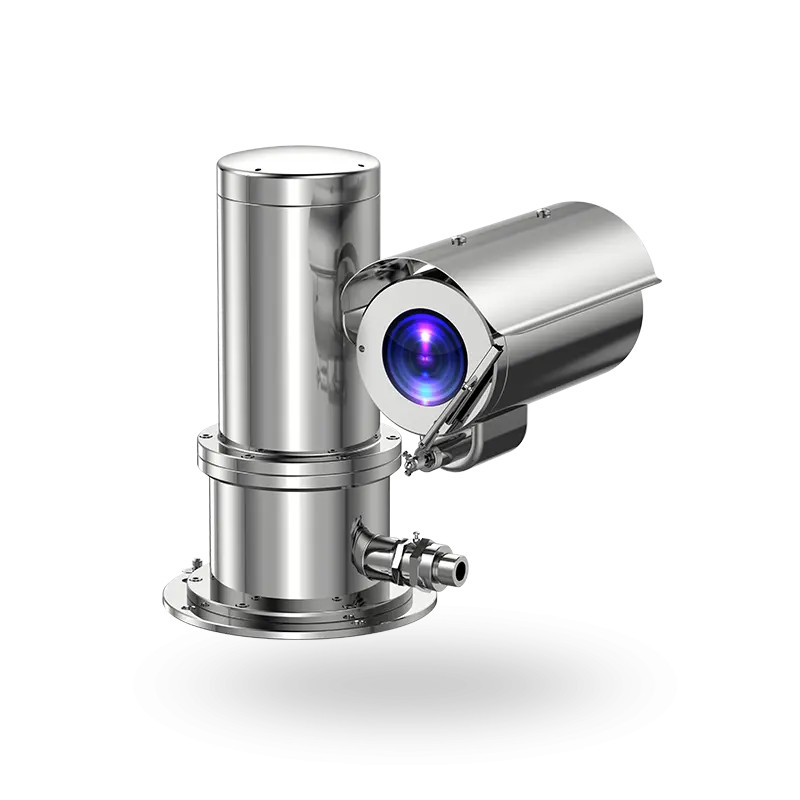

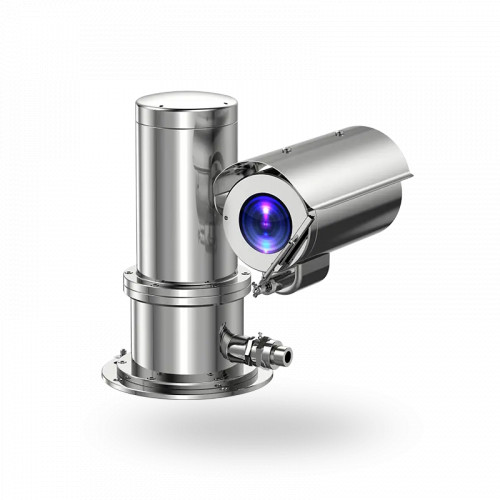

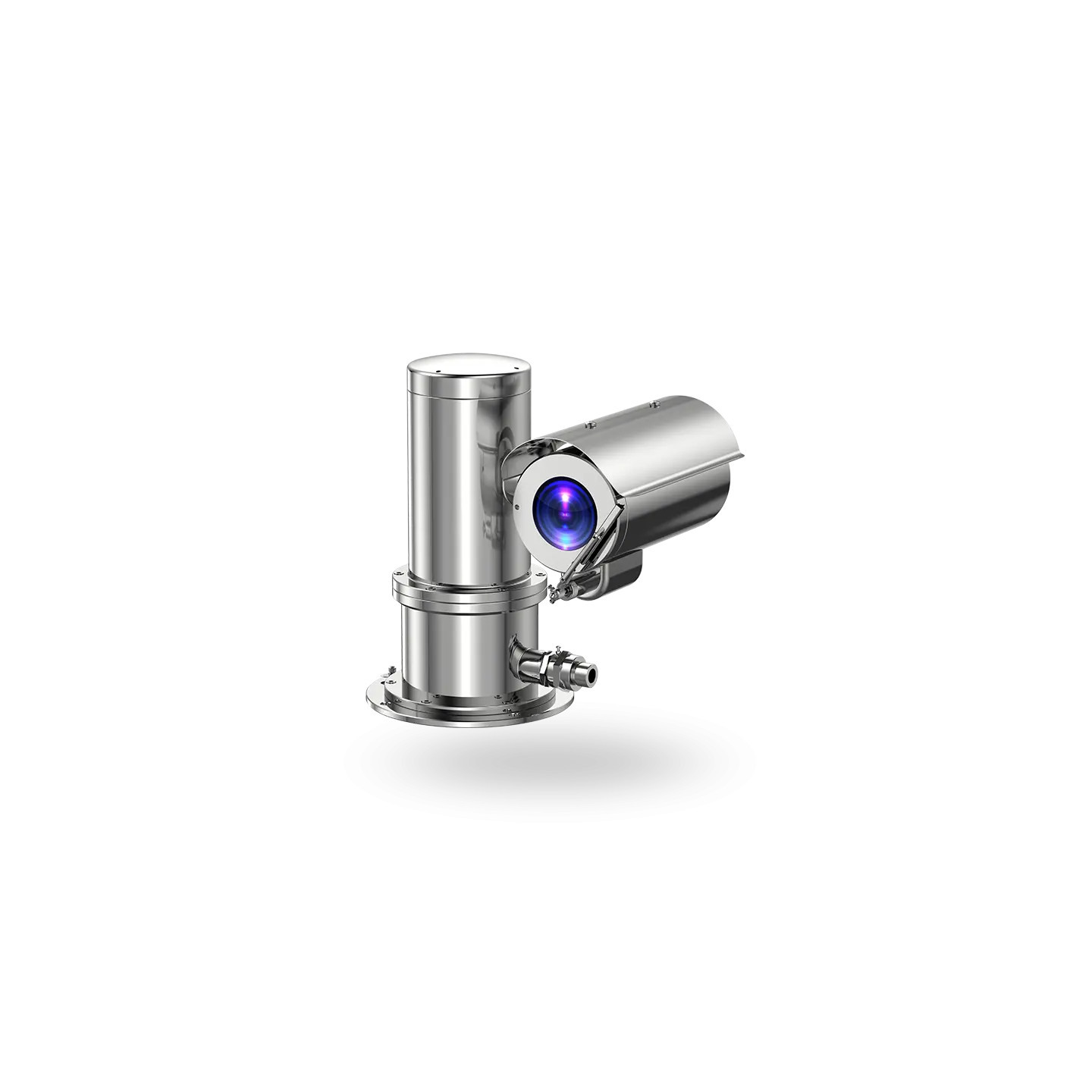

SUNELL SN-IPT8650PAN(-K)-Z30-SS

Camera

Image Sensor

1/2.8”Progressive Scan CMOS

Max. Resolution

5MP, 2592(H) × 1944(V)

Min. illumination

Color: 0.07 Lux @ (F1.6, AGC ON), B/W: 0.02 Lux @ (F1.6, AGC ON)

Electronic Shutter

Auto/Manual, 1/5 to 1/100,000s

Day & Night

Auto (ICR)

Wide Dynamic Range

True WDR

Wiper

Support

Lens

Focal Length

5.3 to 159 mm, 30x Optical Zoom

Max. Aperture

F1.6 to F4.3

Angle of View

H: 56.3° to 2.7°, V: 42.4° to 2.0°

Zoom Speed

Approx. 2.5 s

Digital Zoom

16x

Iris Control

Auto/Manual

Focus Control

Auto/Manual/Semi-automatic

DORI Distance

Detection

104 to 3,120 m (341.2 to 10,236.2 ft)

Observe

41.6 to 1,248 m (136.5 to 4,094.5 ft)

Recognize

20.8 to 624 m (68.2 to 2,047.2 ft)

Identify

10.4 to 312 m (34.1 to 1,023.6 ft)

DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.

Intelligent Analytics

Multi-Object Detection

Support face, human, vehicle detection and capture

Smoke and Flame   Detection

Support

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart Motion Detection

(support the accurate detection of vehicle and human)

People Counting

Support

Smart Tracking

Support

Video and Audio

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, CIF @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 kbps to 12 Mbps

Stream2: 100 kbps to 6 Mbps

Stream3: 100 kbps to 3 Mbps

Smart Encoder

Support

Region of Interest (ROI)

Support

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 kbps (G.711), 128 kbps (RAW_PCM)


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Setting

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Privacy Masking

Support 40 zones, mask color configurable

PTZ

Pan/Tilt Range

Pan: 0° to 360°  endless, Tilt:-90° to +90°

Pan Speed

Pan speed: 0.1°  to 30°/s, preset speed: 30°/s

Tilt Speed

Tilt speed: 0.1°  to 20°/s, preset speed: 30°/s

Presets

400

Patrol Scan

6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol)

Power-Off Memory

Support

3D Positioning

Support

PTZ Status Display

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Event

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Action

Alarm record, SMTP upload, FTP upload, Alarm output, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

User/Host Level

Up to 10 users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

Fiber Optical

-K: 1 single module fiber interface

Audio Interface

1ch Input, 1ch Output

Alarm Interface

5ch Input, 2ch Output

RS-485

Support

CVBS Interface

Support

SD Card Slot

Built-in, up to 256GB

Reset Button

Built-in

General

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Power Supply

100 to 240VAC

Power Consumption

Less than 75W

Operating Temperature

-40°C to 60°C (-40°F to 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP68

Certifications

ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80°C Db;

IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

Material

SUS316L

Dimensions

390 × 295 × 420 mm (15.35 × 11.61 × 16.54 inch)

Net Weight

30 kg (66.14 lb)
