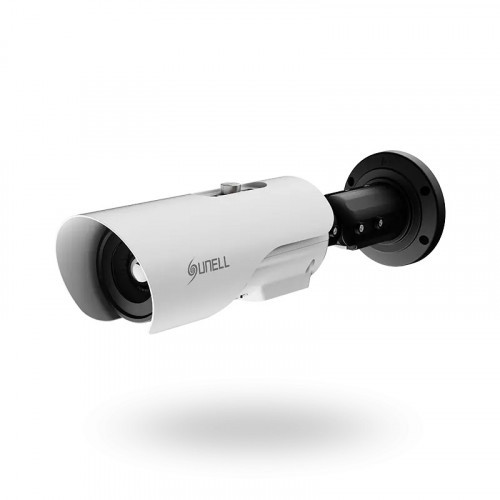

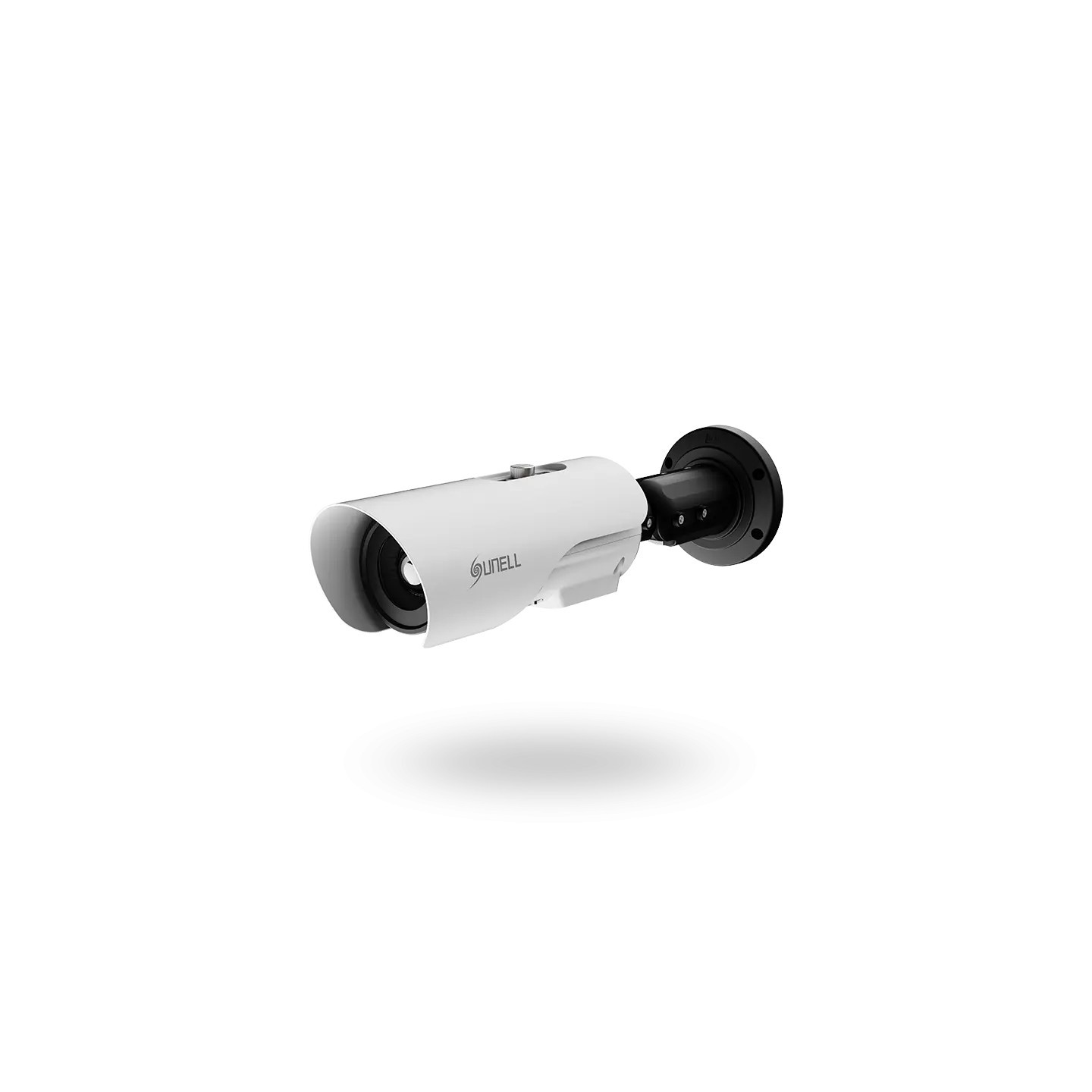

SUNELL SN-TPC4201KT-F (III)

    SUNELL SN-TPC4201KT-F (III)

    Cámara IP térmica tipo bala, IP66

    Contáctenos acerca de este producto

    Contacto de SUNELL SN-TPC4201KT-F (III)

    • Micro bolómetro VOx no refrigerado con resolución de 400×300
    • Lente fija de 8/15/25/35/50 mm opcional
    • Sensibilidad ≤40mK
    • Admite monitoreo de temperatura y alarma de excepción
    • Rango de detección de temperatura: -20 °C a 150 °C (-4 °F a 302 °F)
    • Admite 3 tipos de reglas de medición de temperatura (punto, línea, área)
    • Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, objeto izquierdo, objeto eliminado
    • 17 paletas de colores
    • Mejora deimagen DVE
    • Soporta fuente de alimentación PoE
    • IP66

    Detalle de productos

    Thermal Camera

    Detector Type

    Uncooled VOx Micro bolometer

    Pixel Size

    17 um

    Thermal Sensitivity (NETD)

    ≤40 mK

    Spectral Range

    8 ~ 14 um

    Lens Type

    Fixed

    Focus Control

    Manual Focus

    Focal Length

    8 mm

    15 mm

    25 mm

    35 mm

    50 mm

    F No.

    F1.0

    F1.0

    F1.0

    F1.0

    F1.0

    Angle of View

    H: 46°, V:35.3°

    H:25.5°, V:19.2°

    H:15.4°, V:11.6°

    H: 11°, V:9°

    H: 7.7°, V:5.8°

    Detection Distance Fire(1m*1m)

    235 m

    441 m

    735 m

    1029 m

    1471 m

    Detection Distance Man(1.8m*0.5m)

    235 m

    441 m

    735 m

    1029 m

    1471 m

    Detection Distance Vehicle(4m*1.5m)

    722 m

    1353 m

    2255 m

    3137 m

    4510 m

    Recognition Distance Fire(1m*1m)

    78 m

    147 m

    245 m

    343 m

    490 m

    Recognition Distance Man(1.8m*0.5m)

    59 m

    110 m

    184 m

    257 m

    368 m

    Recognition Distance Vehicle(4m*1.5m)

    180 m

    338 m

    564 m

    789 m

    1127 m

    Video and Audio

    Resolution

    Sensor is 400×300. Image can be scaled up to 704×576

    Frame Rate

    Main Stream: 704×576 @ 25/30fps, Sub Stream: CIF @ 25/30fps

    Bit Rate Control

    CBR/VBR

    Bit Rate

    100Kbps ~ 6Mbps

    Region of Interest

    Off / On (8 Zone, Rectangle)

    Digital Zoom

    16x

    Mirror

    Support

    Defog

    Support

    Motion Detection

    Support

    Privacy Masking

    Off / On (4 Area, Rectangle)

    DVE Image Enhance

    Support

    Image Setting

    Brightness/Sharpness/Contrast/Mirror/FFC/3D DNR

    Color Palettes

    White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes

    Audio Compression

    G.711: 8kbps, RAW_PCM: 16kbps

    Intelligence

    Intelligent Functions

    Motion detection, Disk alarm, I/O alarm, Temperature detection & alarm

    IVS

    Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed

    Temperature Detection

    Temperature Detection

    Support 3 temperature measurement rule types (Spot, Line, Area)

    Temperature Alarm

    Over temperature alarm, Temperature difference  alarm

    Accuracy

    ±2℃ / ±2%

    Response Time

    ≤ 30ms

    Theory of temperature measurement range

    -40°C ~ 150°C (-40°F ~ 302°F)

    Temperature display mode

    Temperature target >5℃, Display absolute temperature value,

    Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)

    Network

    Ethernet

    RJ-45 (10/100Base-T)

    Protocols

    IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x

    Interoperability

    ONVIF, CGI, SDK

    Streaming Method

    Unicast

    Max. User Access

    10 Users

    Edge Storage

    Local PC for instant recording, Micro SD card 128GB

    Web Viewer

    <IE11, Chrome, Firefox, Microsoft Edge

    Web Language

    English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

    Interface

    Ethernet

    1 Ethernet (10/100 Base-T) RJ-45 Connector

    Audio Interface

    1ch Audio In,1ch Audio Out

    Alarm

    2ch Alarm In,2ch Alarm Out

    RS485

    Support

    BNC Output

    Support

    Reset Button

    Support

    General

    Power Supply

    DC12V/POE (IEEE 802.3af)

    Power Consumption

    Max 5 W

    Working Temperature

    -40°C ~ 60°C (-40°F ~ 140°F)

    Storage Conditions

    0~ 90% RH

    Certifications

    CE/FCC

    Ingress Protection

    IP66

    Casing

    Metal

    Dimensions

    φ110 × 388 mm (φ4.33 × 15.28 inch)

    Net Weight

    1.8 kg (4.97 lb) with 15mm lens
