VIVOTEK FD9383-HV
Cámara IP tipo domo. 5MP @30 fps, Trend Micro loT Security, Smart VCA, análisis inteligente de objetos de visión, WDR Pro, IP66/IK10, 30M IR

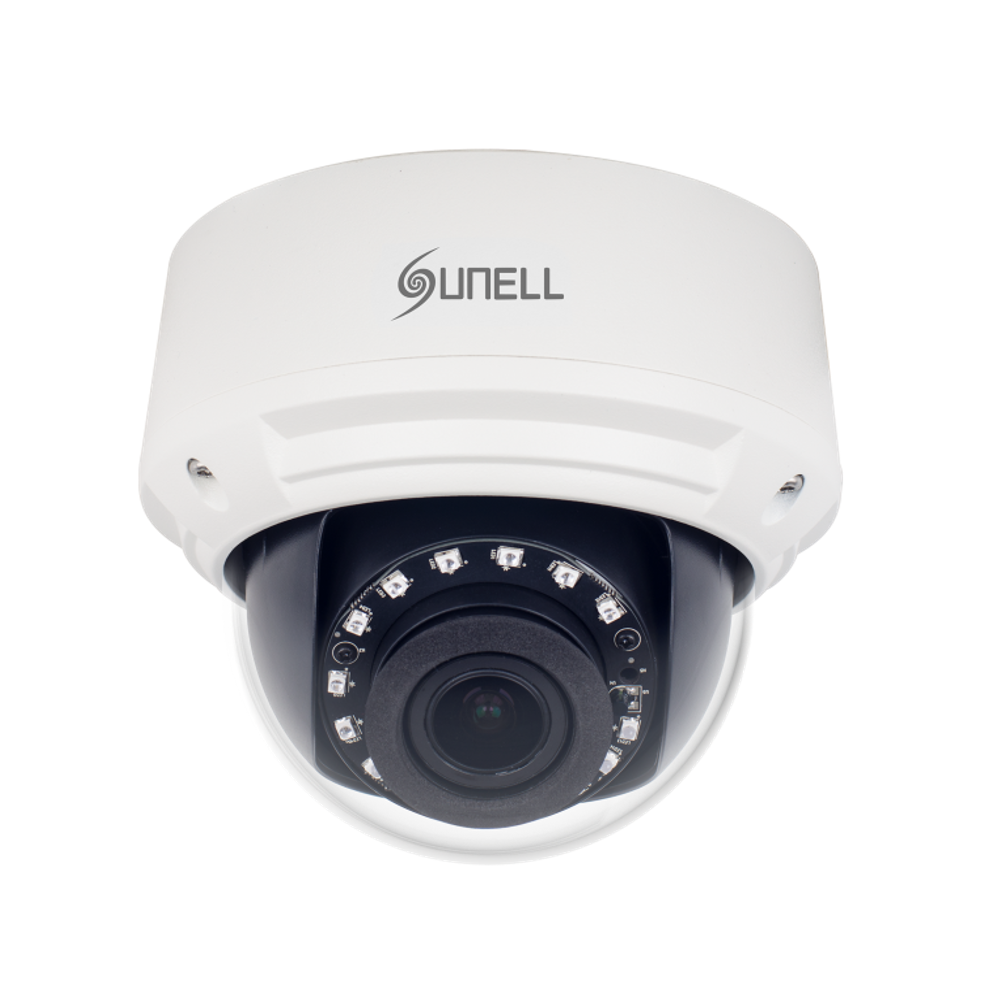

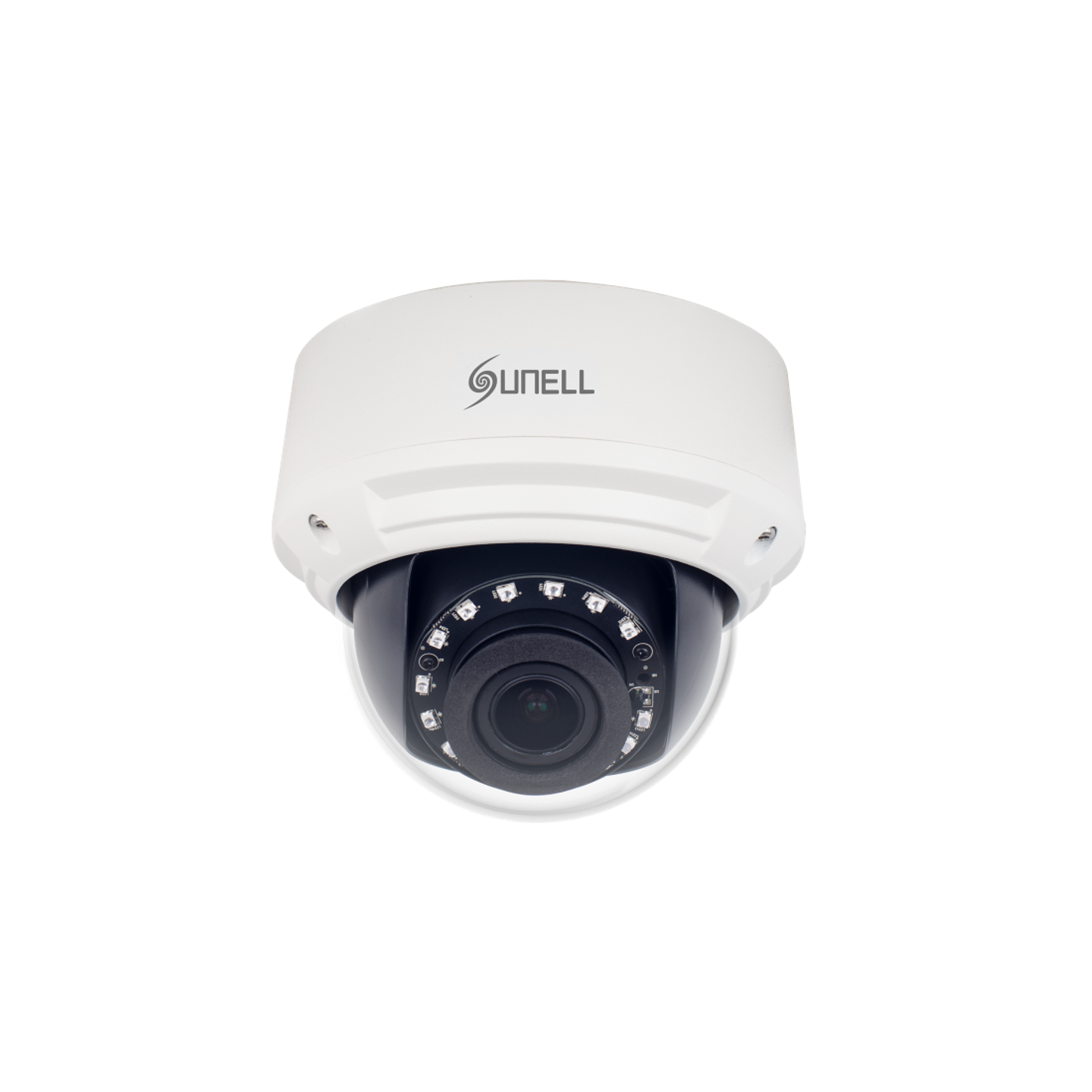

Cámara IP tipo Domo, 2MP, IR 40m, IP66, IK10
Image Sensor 1/2.8” Progressive Scan CMOS
Effective Pixels 1920(H)×1080(V)
Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination Color: 0.1 Lux @ (F1.2,AGC ON) ,
B/W: 0 Lux @ (IR LED ON)
S/N Ratio 55 dB
Day/Night Auto(ICR)/Day / Night
Wide Dynamic Range DWDR
IR Range Up to 30 m (98.4 ft)
IR On/Off Control Auto/Manual
Pan/Tilt/Rotation Range Pan: 0˚ ~ 355˚, Tilt: 0˚ ~ 80˚, Rotation: 0˚ ~ 355˚
Focal Length Manual
Iris Fixed Iris
Focal Length 2.8 ~ 12 mm
F Number F1.6
Angle of View H: 98.6° ~ 30.6°, V: 51.1° ~ 17.2°
Streaming Capability 2 Streams
Stream/Frame Rate Main Stream: 1920×1080, 1280×720 @ 25/30fps
Sub Stream: 704×576, 640×360, 480×360, 352×288 @ 25/30fps
Bit Rate Control CBR/VBR
Bit Rate Main Stream: 128kbps ~ 4096kbps
Sub Stream: 16kbps ~ 1536kbps
Image Adjustment Brightness/Sharpness/Contrast/Saturation
White Balance Auto/Manual
Mirror Support
Noise Reduction 2D/3D DNR
Image Enhancement WDR/HLC/BLC/Defog
Motion Detection Support
Privacy Masking Support
Protocols IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP
Interoperability ONVIF, SDK
Streaming Method Unicast
Max. User Access 4 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Management Software SunView
Human Detection Support
Smart Function Perimeter, Virtual Fence,
Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
Storage N/A
Reset Button N/A
Power Supply DC12V/POE (IEEE 802.3af)
Power Consumption Max 5.5 W
Operating Temperature -35°C ~ 50°C (-31°F ~ 122°F )
Operating Humidity Less than 90% RH
Ingress Protection IP66, IK10
Certifications CE/FCC
Casing Metal

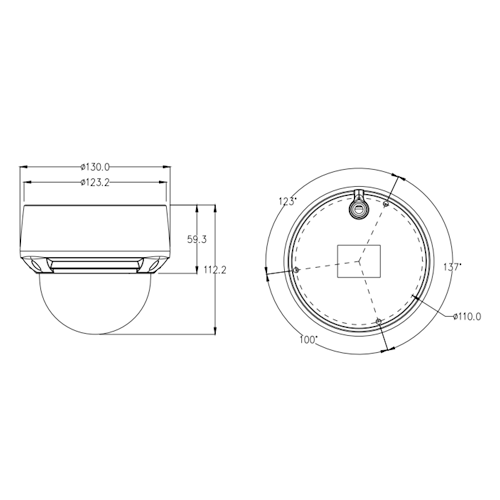

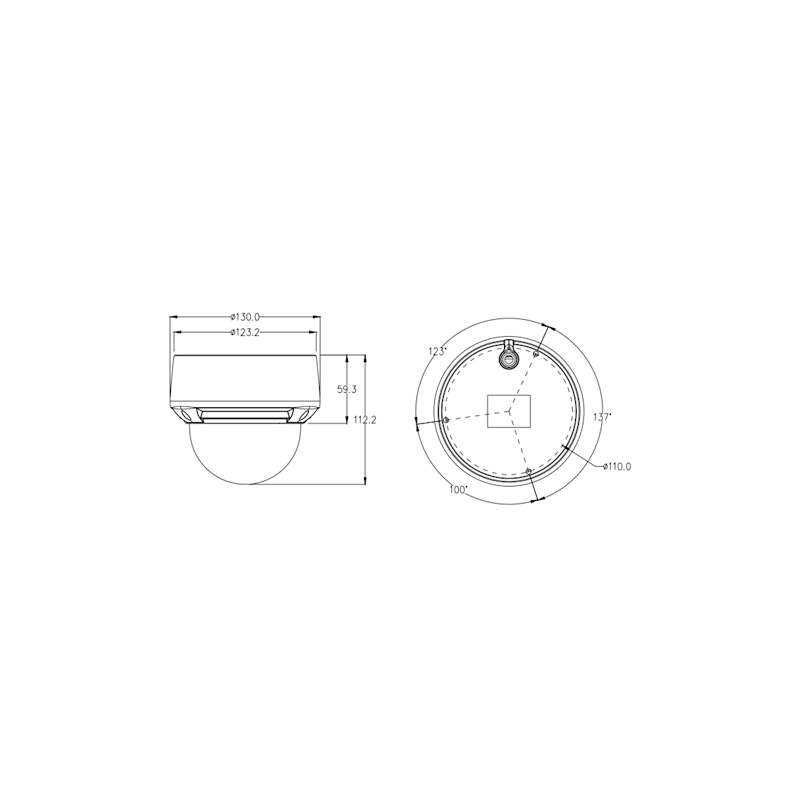

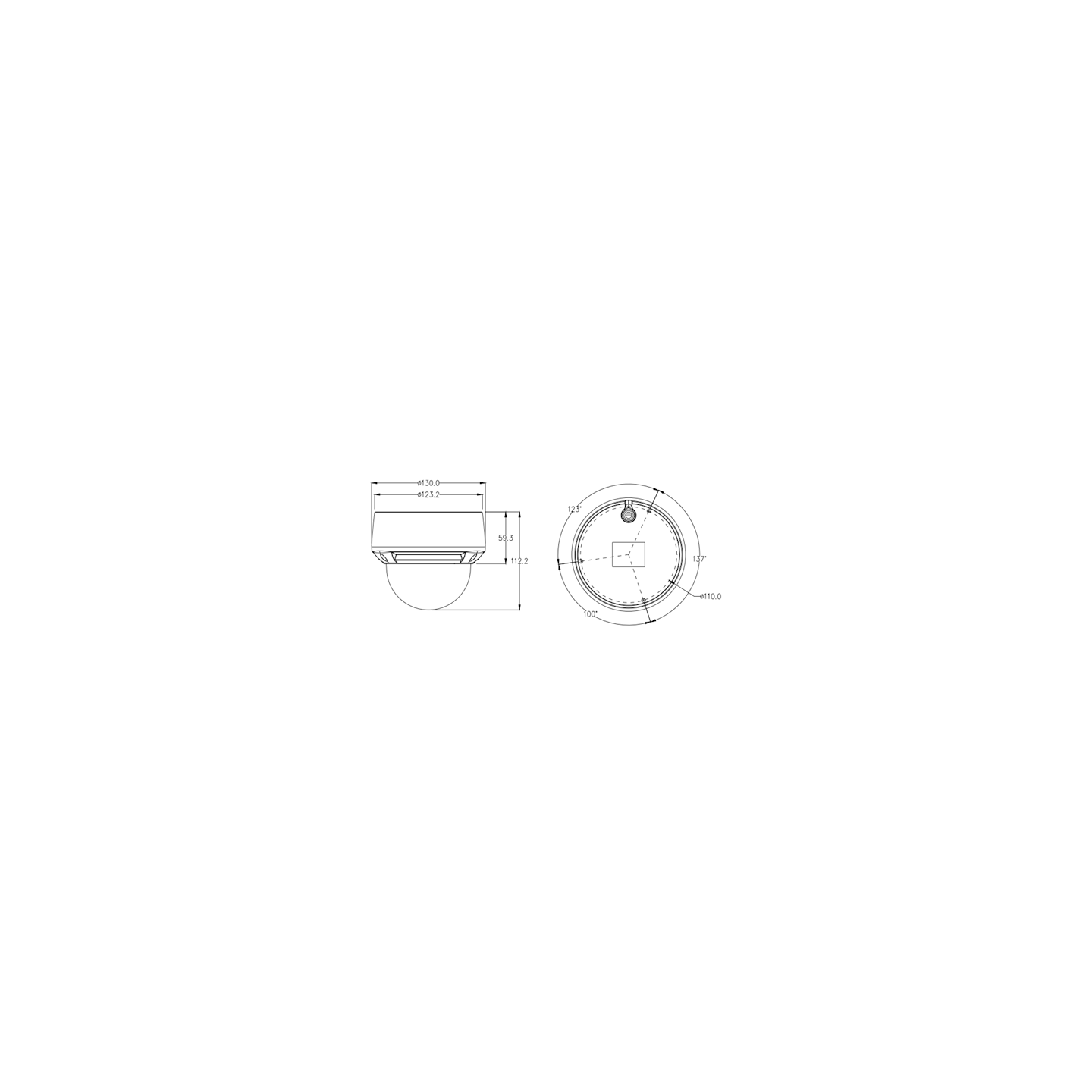

Dimensions φ130 × 112 mm (φ5.12 × 4.41 inch)
Net Weight 0.69 kg (1.52 lb)
Cámara IP tipo domo. 5MP @30 fps, Trend Micro loT Security, Smart VCA, análisis inteligente de objetos de visión, WDR Pro, IP66/IK10, 30M IR
FD9371-HTV Cámara IP tipo Domo fija
Este modelo está descontinuado. El reemplazo recomendado es FD9387-HTV-A
Cámara IP tipo Domo fija para exterior
Cámara IP tipo domo de exterior, 5MP 30fps, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, SNV
Cámara IP tipo domo de exterior, 5MP, H.265, 2.8~12 mm, 30M IR, SNV, WDR Pro
Cámara IP tipo domo de exterior, 5MP, H.265, 2.8/3.6mm, 30M IR, SNV, WDR Pro
FD8164V Cámara IP tipo Domo Antivandálica 2MP
Descontinuado
2MP - 1920x1080 - 30 fps
Cámara IP tipo domo. 5MP@30 fps, 2 variantes de distancia focal (2,7 ~ 13,5mm, 7 ~ 22mm), H.265, 50M IR, IP54
Cámara IP tipo domo de exterior, 2MP 30fps, H.265, 2.8/3.6mm, 30M IR, WDR Pro, SNV
FD8367-V Cámara IP Domo Anti-vandalismo 2MP
Este modelo está descatalogado. El reemplazo recomendado es FD8367A-V
VIVOTEK FD8367-V es una cámara de red exterior diseñada para diversas aplicaciones en exteriores. Equipada con un sensor de 2MP permite la visualización de resolución de 1920x1080 a 30 fps
Cámara IP tipo domo de exterior, 5MP, H.265, 2MP 60fps, 2.7~13.5mm, WDR Pro, SNV, -50°C ~60°C
Cámara de seguridad IP tipo domo, 4K 30fps, H.265, 50M IR, Smart IR III, SNV, WDR Pro, Búsqueda de atributos, -50°C ~ 60°C
Cámara IP tipo domo de exterior, 5MP 20fps, H.265, 2.8~12mm, 30M IR, WDR Pro, SNV
FD8133V Cámara IP tipo Domo Antivandálica. La FD8133V de VIVOTEK es una cámara de red domo fija fácil de utilizar que ha sido específicamente diseñada para ser utilizada en aplicaciones de seguridad en interiores y exteriores gracias a su compacto y estilizado diseño a prueba de vandalismo. Viene equipada con un sensor de 1MP que posibilita la resolución de la visualización a 1280 x 800 a 30 fps.
Cámara IP tipo domo de exterior, 5MP, 2.4mm, 10M 940nm IR, WDR Pro, SNV, IK10+
FD8137HV-F3 Cámara IP tipo Domo Antivandalica 1MP
Este modelo está descatalogado. El reemplazo recomendado es FD836BA-HVF2
La FD8137HV de VIVOTEK es una cámara de red domo fija fácil de usar, diseñada específicamente para aplicaciones de seguridad de interiores y exteriores, cuenta con un compacto y estilizado diseño a prueba de vandalismo. Además, posee un sensor CMOS HD WDR para hacer frente a las condiciones de iluminación difíciles.
Cámara IP tipo doo de exterior, 5MP 30fps, H.265, 2MP 60fps, 2.8~10mm, 30M IR, WDR Pro, SNV
