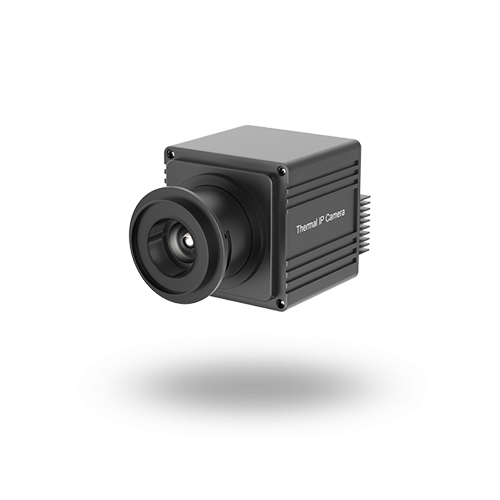

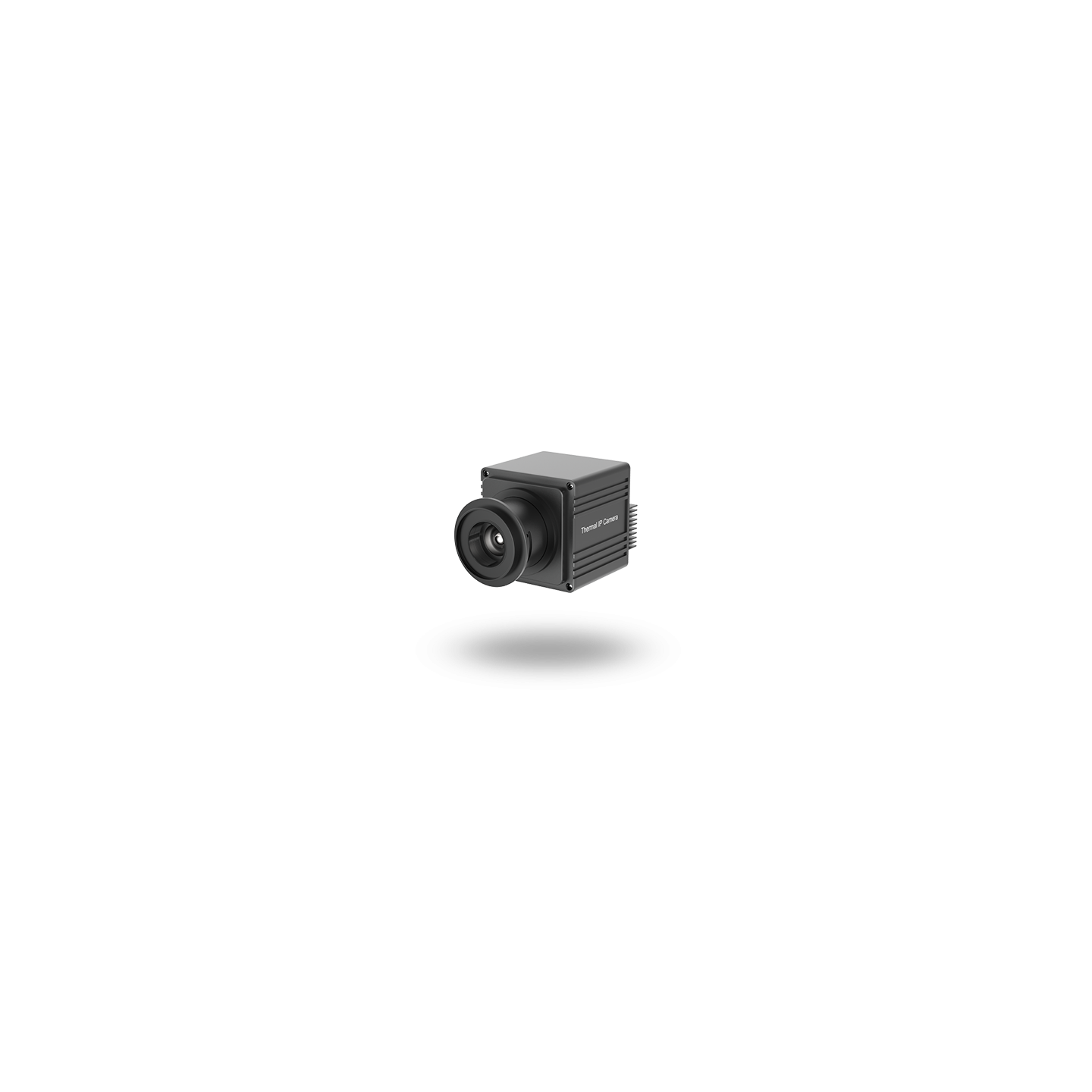

SUNELL SN-TPC4201AT/F (III)
    SUNELL

    SUNELL SN-TPC4201AT/F (III)

    Cámara Térmica tipo box. Lente fija de 8/15/25/35/50 mm opcional

    Contáctenos acerca de este producto

    Contacto de SUNELL SN-TPC4201AT/F (III)

    • Micro bolómetro VOx no refrigerado con resolución de 400×300
    • Sensibilidad ≤40mK
    • Lente fija de 8/15/25/35/50 mm opcional
    • Soporta monitoreo de temperatura y alarma de excepción
    • Soporta 3 tipos de reglas de medición de temperatura (spot, line, area)
    • Rango de medición de temperatura: -20 °C ~ 150 °C (-4 °F ~ 302 °F)
    • Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, objeto a la izquierda, objeto eliminado
    • Mejora de la imagen DVE



    Detalle de productos

    Thermal Camera
    Image Sensor Uncooled VOx Focal Plane Arrays
    Resolution Sensor is 400×300. Image can be scaled up to 704×576
    Pixel Pitch 17 um
    Thermal Sensitivity (NETD) ≤ 40 mK
    Spectral Range 8 ~ 14 um
    Lens Type Fixed
    Focus Control Manual Focus
    Focal Length 8 mm 15 mm 25 mm 35 mm 50 mm
    F No. F1.0 F1.0 F1.0 F1.0 F1.0
    Angle of View H: 46°, V:35.3° H:25.5°, V:19.2° H:15.4°, V:11.6° H: 11°, V:9° H: 7.7°, V:5.8°
    Detection Distance  235 m 441 m 735 m 1029 m 1471 m
    (Fire: 1×1m)
    Detection Distance  235 m 441 m 735 m 1029 m 1471 m
    (Human: 1.8×0.5m)
    Detection Distance  722 m 1353 m 2255 m 3137 m 4510 m
    (Vehicle: 4×1.5m)
    Recognition Distance  59 m 110 m 184 m 257 m 368 m
    (Human: 1.8×0.5m)
    Recognition Distance  180 m 338 m 564 m 789 m 1127 m
    (Vehicle: 4×1.5m)
    Video and Audio
    Main Stream 704×576 @ 25/30fps
    Sub Stream CIF @ 25/30fps
    Bit Rate Control CBR/VBR
    Bit Rate Main stream: 100Kbps ~ 6Mbps
    Sub stream: 10Kbps ~ 1.5Mbps
    Region of Interest Off / On (8 Zone, Rectangle)
    Smart Encode Support
    Audio Compression G.711: 8kbps, RAW_PCM: 16kbps
    Image Setting Brightness, Sharpness, Contrast
    Mirror Support
    Pseudo-color Setting White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes
    DVE Image Enhance Support
    Noise Reduction 2D/3D DNR
    Privacy Masking Support
    Smart Function
    Smart Functions Motion detection, Disk alarm, I/O alarm, Temperature detection & alarm
    Intelligent Analysis Intrusion, Single line crossing, Double line crossing, Object left, Object removed

    Temperature Detection
    Temperature Detection 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).
    Temperature Alarm Over temperature alarm, Temperature difference alarm
    Accuracy ±2℃ / ±2%
    Response Time ≤ 30ms
    Temperature Range -20°C ~ 150°C (-4°F ~ 302°F)
    Temperature display mode Temperature target >5℃, Display absolute temperature value,
    Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)

    Network
    Protocols IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x
    Interoperability ONVIF, CGI, SDK
    Max. User Access 10 Users
    Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
    Web Language English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

    Interface
    Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
    Audio Interface 1ch input, 1ch output
    Alarm Interface 2ch input, 2ch output
    RS485 Support
    CVBS Interface BNC, 75 ohm
    Reset Button Support
    SD Card Slot Support, up to 128GB

    General
    Power Supply DC12V ±10%
    Power Consumption Max 5 W
    Working Temperature -40°C ~ 60°C (-40°F ~ 140°F)
    Storage Conditions 0~ 90% RH
    Certifications CE /FCC
    Ingress Protection N/A
    Casing Metal
    Dimensions 154.7 × 70 × 70 mm (6.09 × 2.76 × 2.76 inch)
    Net Weight 0.7 kg (1.54 lb) with 50 mm lens
