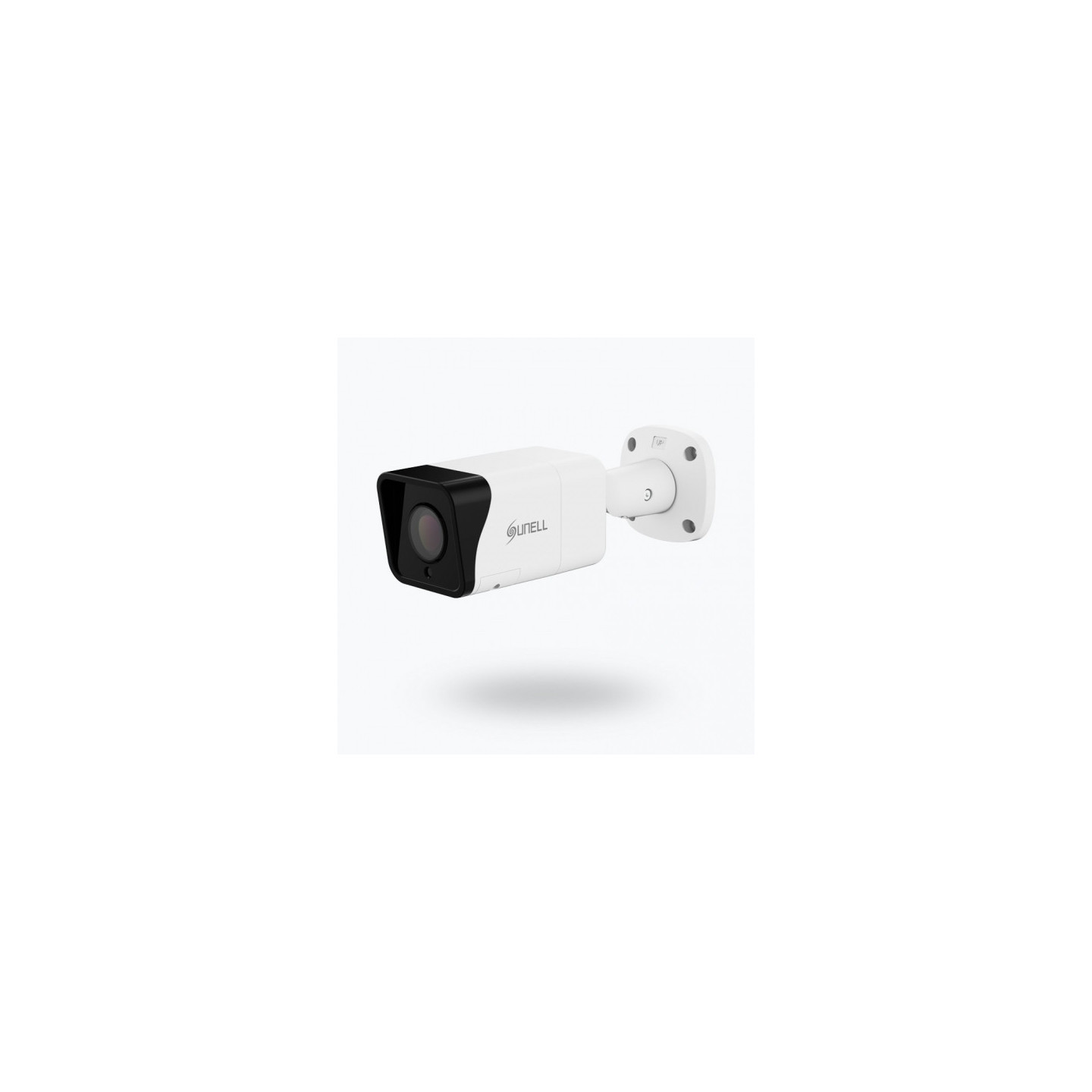

Sunell SN-IPR8020BZAN-Z
    SUNELL

    Sunell SN-IPR8020BZAN-Z

    Cámara IP bala varifocal IR de 2M

    Contáctenos acerca de este producto

    Contacto de Sunell SN-IPR8020BZAN-Z

    • CMOS de barrido progresivo de 1/2,8"
    • máx. 1080P (1920 × 1080) a una resolución de 25/30 fps
    • Lente motorizada de 2,7~13,5 mm
    • WDR, 3D DNR, ROI, HLC, BLC, desempañador
    • Admite detección y captura de rostros, humanos y vehículos
    • Detección inteligente: perímetro, valla virtual única, vallas virtuales dobles, merodeo, conversación, conteo de personas
    • 1/1 entrada/salida de audio, 1/1 entrada/salida de alarma
    • IR inteligente hasta 40 m
    • Ranura micro SD integrada, IP67, PoE

    Detalle de productos

    Camera

    Image Sensor 1/2.8” Progressive Scan CMOS

    Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s

    Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux @ (IR LED ON)

    S/N Ratio 55dB

    Day/Night Auto(ICR)/Day/Night/Time

    Wide Dynamic Range True WDR

    IR Range Up to 40 m (131.2 ft)

    IR On/Off Control Auto/Manual

    Pan/Tilt/Rotation Range Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚

    Lens

    Lens Type Motorized focus

    Iris Fixed Iris

    Focal Length 2.7 ~ 13.5 mm

    F Number F1.6

    Angle of View H: 101°~28°, V: 54°~16°

    Video

    Max. Resolution 2MP (1920×1080)

    Streaming Capability 3 Streams

    Stream/Frame Rate Stream1: 1920×1080, 1280×720 @ 25/30fps

    Stream2: D1, VGA, 640×360, CIF, QVGA @ 25/30fps

    Stream3: VGA, CIF, QVGA @ 25/30fps

    Bit Rate Control CBR/VBR

    Bit Rate Stream1: 200kbps~12Mbps

    Stream2: 100kbps~6Mbps

    Stream3: 100kbps~3Mbps

    Image Enhancement HLC / BLC / Defog / WDR

    White Balance Auto

    Gain Control Auto/Manual

    Noise Reduction 2D/3D DNR

    Aisle Mode Support

    Smart IR Support

    Mirror Support

    Region of Interest Off/On (8 Zone, Rectangle)

    Motion Detection Support

    Privacy Masking Support

    Smart Function

    Smart Function Support face, human, vehicle detection

    Intelligent Detection Perimeter, Single Virtual Fence, Double Virtual Fences,  Loiter, People Counting

    Audio

    Compression G.711, RAW_PCM

    Bit Rate 8kbps, 16kps, 64kbps

    Network

    Protocols IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL

    Interoperability ONVIF, SDK, CGI

    Streaming Method Unicast

    Max. User Access 10 Users

    Web Viewer <IE11, Chrome, Firefox, Microsoft Edge

    Management Software SunView

    Interface

    Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector

    Audio Interface 1ch Input, 1ch Output

    Alarm Interface 1ch Input, 1ch Output

    Reset Button Support

    Built-in SD Card Slot Yes, up to 256GB

    Electrical

    Power Supply DC12V/POE (IEEE 802.3af)

    Power Consumption Max 8.5 W

    Operating Temperature -40°C ~ 55°C (-40°F ~ 131°F )

    Operating Humidity Less than 90% RH

    Ingress Protection IP67

    Certifications CE/FCC

    Casing Metal

    Dimensions 232 × 80 × 80mm (9.13" × 3.15" × 3.15")

    Net Weight 0.81 kg (1.79 lb)
