• SUNELL SN-IPR5122CSBN-B
    • SUNELL SN-IPR5122CSBN-B

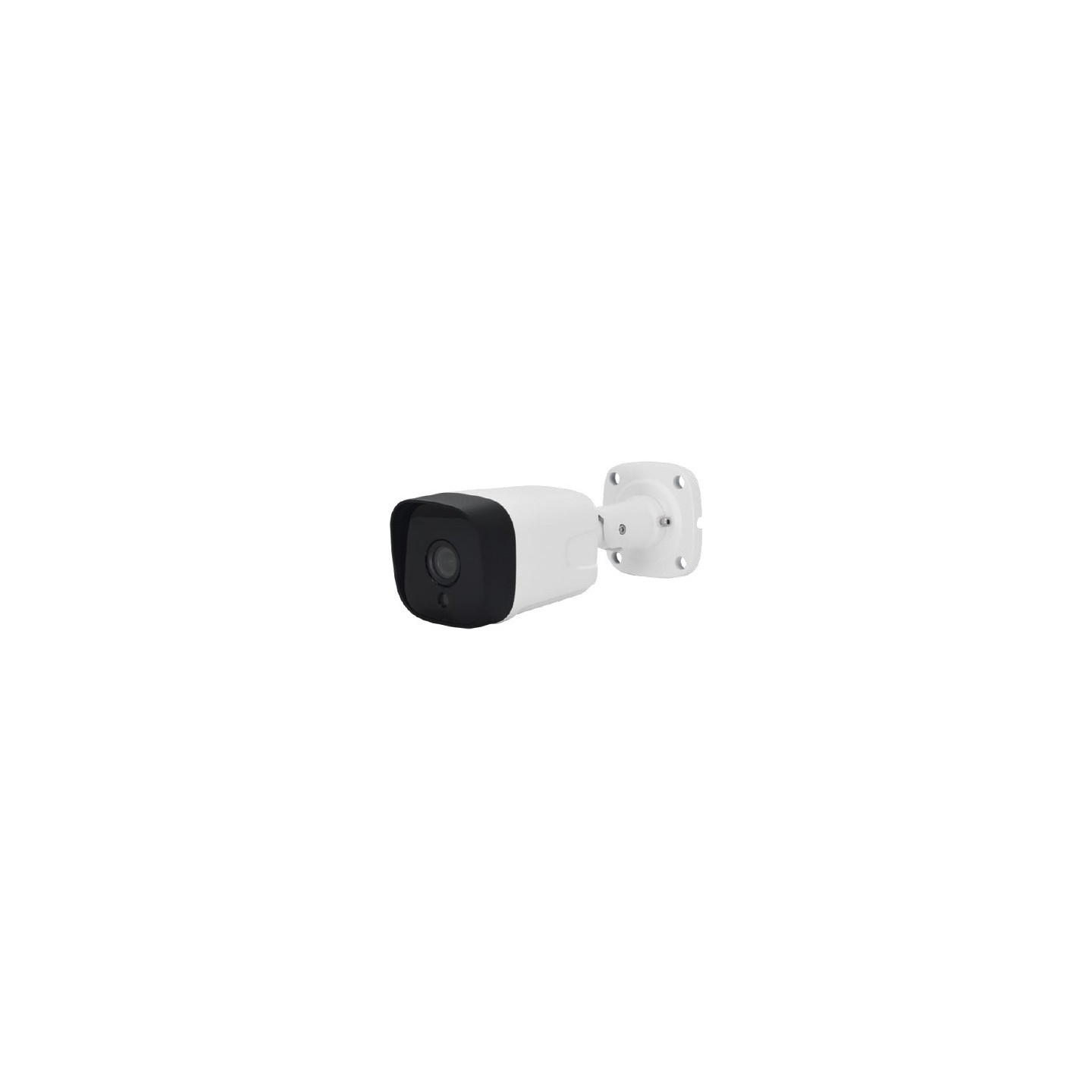

    SUNELL SN-IPR5122CSBN-B
    SUNELL

    SUNELL SN-IPR5122CSBN-B

    Cámara IP Bullet de 2MP IR 30m IP66

    Contáctenos acerca de este producto

    Contacto de SUNELL SN-IPR5122CSBN-B

    • CMOS de barrido progresivo de 1/2,8"
    • Lente fija de 4 mm, 2,8 mm opcional
    • Resolución máxima 1920×1080 @30fps
    • Admite la intrusión y el cruce de líneas en función de la detección humana
    • DWDR, 3D DNR, HLC, BLC, Desempañado
    • Distancia IR de hasta 30 m
    • Fuente de alimentación de 12 V CC/PoE
    • IP66


    Detalle de productos

    Camera

    • Image Sensor 1/2.8” Progressive Scan CMOS
    • Max. Resolution 1920(H)×1080(V)
    • Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
    • Min. illumination Color: 0.1 Lux @ (F1.2,AGC ON) ,
    • B/W: 0 Lux @ (IR LED ON)
    • S/N Ratio 55 dB
    • Day/Night Auto(ICR)/Day / Night
    • Wide Dynamic Range DWDR
    • IR Range Up to 30 m (98.4 ft)
    • IR On/Off Control Auto/Manual
    • Pan/Tilt/Rotation  Range Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚

    Lens

    • Lens Type Fixed focal
    • Iris Fixed Iris
    • Focal Length 4 mm
    • F Number F1.6
    • Angle of View H: 83.8°, V: 42.7°

    Video

    • Streaming Capability 2 Streams
    • Stream/Frame Rate Stream1: 1920×1080, 1280×720 @ 25/30fps
    • Stream2: 704×576, 640×360, 480×360, 352×288 @ 25/30fps
    • Bit Rate Control CBR/VBR
    • Bit Rate Stream1: 128kbps ~ 4096kbps
    • Stream2: 16kbps ~ 1536kbps
    • Image Enhancement HLC/BLC/Defog
    • White Balance Auto
    • Gain Control Auto/Manual/Night
    • Aisle Mode N/A
    • Noise Reduction 2D/3D DNR
    • Region of Interest N/A
    • Motion Detection Support
    • Privacy Masking Support

    Network

    • Protocols IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP
    • Interoperability ONVIF, SDK
    • Max. User Access 4 Users
    • Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
    • Management Software SunView

    Smart Function

    • Human Detection Support
    • Smart Function Intrusion detection

    Interface

    • Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
    • Storage Built-in Micro SD slot, up to 256GB
    • Reset Button Support

    Electrical

    • Power Supply DC12V/POE (IEEE 802.3af)
    • Power Consumption Max 5.5W
    • Operating Temperature -35°C ~ 55°C (-31°F ~ 131°F )
    • Operating Humidity Less than 90% RH
    • Ingress Protection IP66
    • Certifications CE/FCC
    • Casing Metal

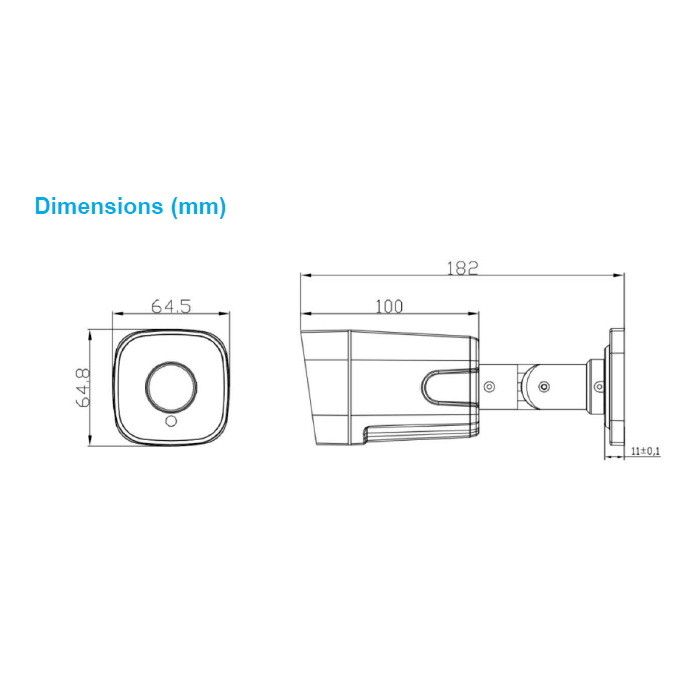

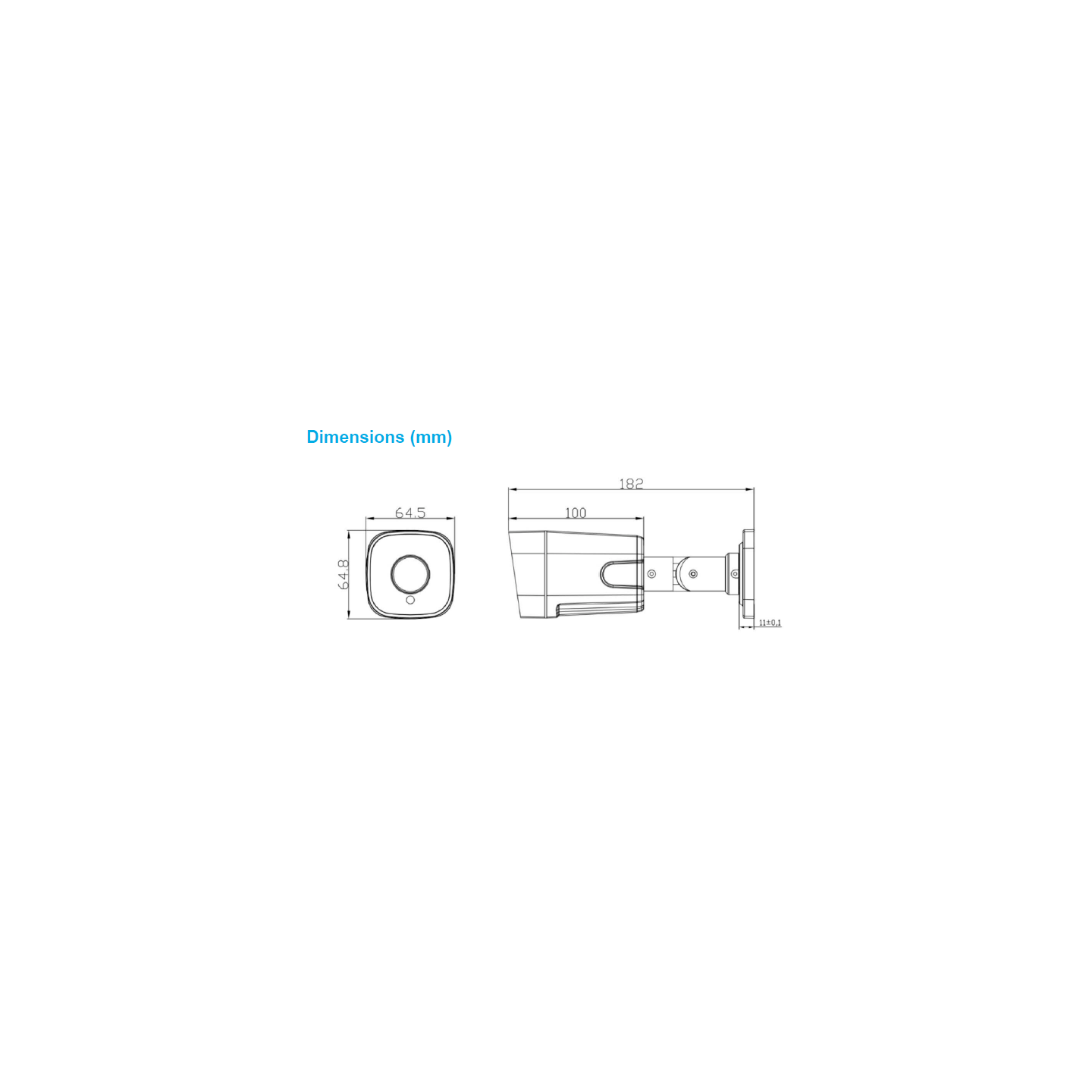

    • Dimensions 182 × 64.5 × 64.8 mm (7.17 × 2.54 × 2.55 inch)
    • Net Weight 0.35 kg (0.77 lb)
