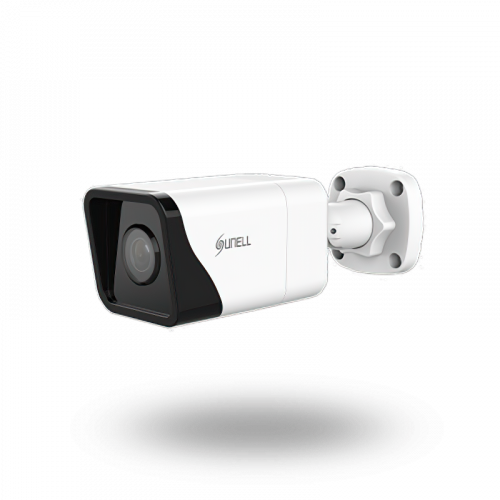

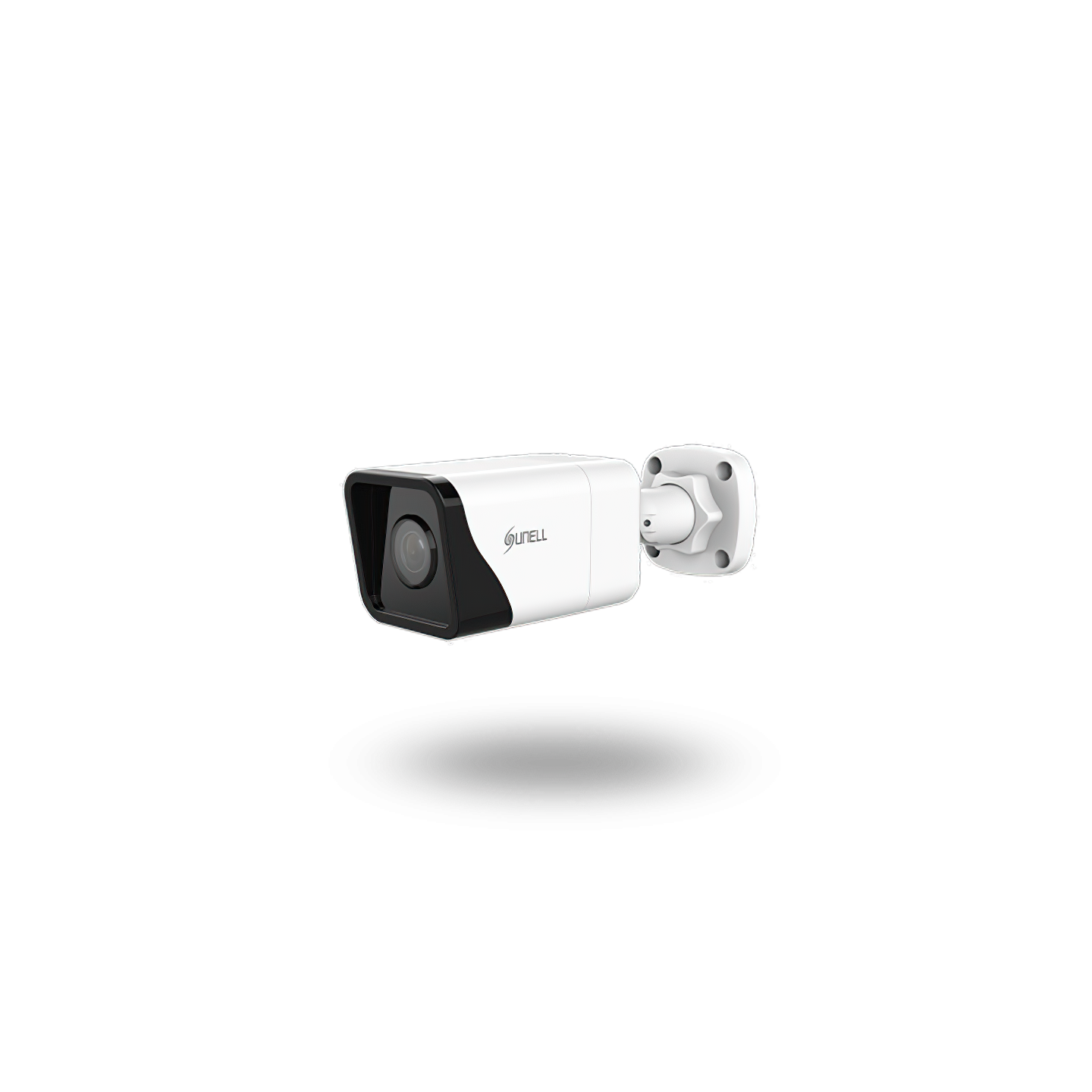

SUNELL SN-IPR8140BYBN-B
    SUNELL

    SUNELL SN-IPR8140BYBN-B

    Cámara IP tipo bullet de 4 MP, IR 30m, IP67

    Contáctenos acerca de este producto

    Contacto de SUNELL SN-IPR8140BYBN-B

    • CMOS de escaneo progresivo de 1/2,7”
    • Máx. Resolución de 4 MP (2688 × 1512) a 25 fps
    • Lente fija de 2,8 mm (4 mm opcional)
    • DWDR, 3D DNR, ROI, HLC, BLC
    • Admite detección de rostros, personas y vehículos
    • Eventos inteligentes: Intrusión, Cruce de una sola línea, Cruce de doble línea, Merodeo, Camino equivocado
    • Distancia IR de hasta 30 m
    • Ranura para tarjeta SD incorporada
    • Admite fuente de alimentación de 12 VCC/PoE
    • IP67

    Detalle de productos

    Camera

    Image Sensor 1/2.7” Progressive Scan CMOS

    Max. Resolution 4MP (2560×1440)

    Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s

    Min. illumination Color: 0.03 Lux @ (F1.2, AGC ON),

    B/W: 0 Lux @ (IR LED ON)

    Day & Night IR cut filter

    IR Distance Up to 30 m (98.4 ft)

    IR On/Off Control Auto/Manual

    Angle Adjustment Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚

    Lens

    Lens Type Fixed lens

    Iris Type Fixed Iris

    Focal Length 2.8 mm 4 mm

    Aperture F2.0 F1.6

    Field of View H: 98°, V: 52.5° H: 81.5°, V: 41.5°

    Video

    Streaming Capability 3 Streams

    Stream/Frame Rate

    Stream1: 2560×1440, 2304×1296, 1920×1080,

    1280×720 @ 25fps

    Stream2: D1, VGA, 640×360, CIF, QVGA @ 25fps

    Stream3: VGA, CIF, QVGA @25fps

    Bit Rate Control CBR/VBR

    Bit Rate

    Stream1: 100kbps~6Mbps

    Stream2: 100kbps~6Mbps

    Stream3: 100kbps~3Mbps

    Region of Interest Off/On (8 Zone, Rectangle)


    Image Adjustment Brightness, Sharpness, Contrast, Saturation

    Aisle Mode Support

    Mirror Support

    White Balance Auto/Manual

    Day/Night Setting Auto, Day, Night, Time

    Smart IR Support

    Noise Reduction 2D/3D DNR

    Image Enhancement HLC, BLC

    Wide Dynamic Range DWDR

    S/N Ratio 55dB

    Motion Detection Support

    Privacy Masking Support

    Smart Function

    Multi-Object

    Detection Supports face, human and vehicle detection

    Intelligent Analysis

    Intrusion, Single line crossing, Double line crossing,

    Loitering, Wrong way

    Support alarm triggering by specified target types

    (human and vehicle)

    Network

    Protocols

    IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP,

    RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,

    UPnP, FTP, ARP, SNMP, TLS/SSL

    Interface Protocol ONVIF, SDK, CGI

    Streaming Method Unicast

    Max. User Access 10 Users

    Web Viewer <IE11, Chrome, Firefox, Microsoft Edge

    Language English, Chinese, Polish, Italian, Portuguese, Spanish,

    Russian, French, Czech, Hungarian. Default: English

    Interface

    Network Interface 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

    Reset Button Support

    SD Card Slot Built-in, up to 256GB

    Electrical

    Power Supply DC12V (-15%~+25%)/POE (IEEE 802.3af)

    Power Consumption Max 6 W

    Operating

    Temperature -30°C ~ 55°C (-22°F ~ 131°F )

    Operating Humidity Less than 90% RH

    Ingress Protection IP67

    Certifications CE/FCC

    Casing Metal

    Dimensions 187.6 × 64 × 64mm (7.39" × 2.52" × 2.52")

    Net Weight 0.55 kg (1.21 lb)
