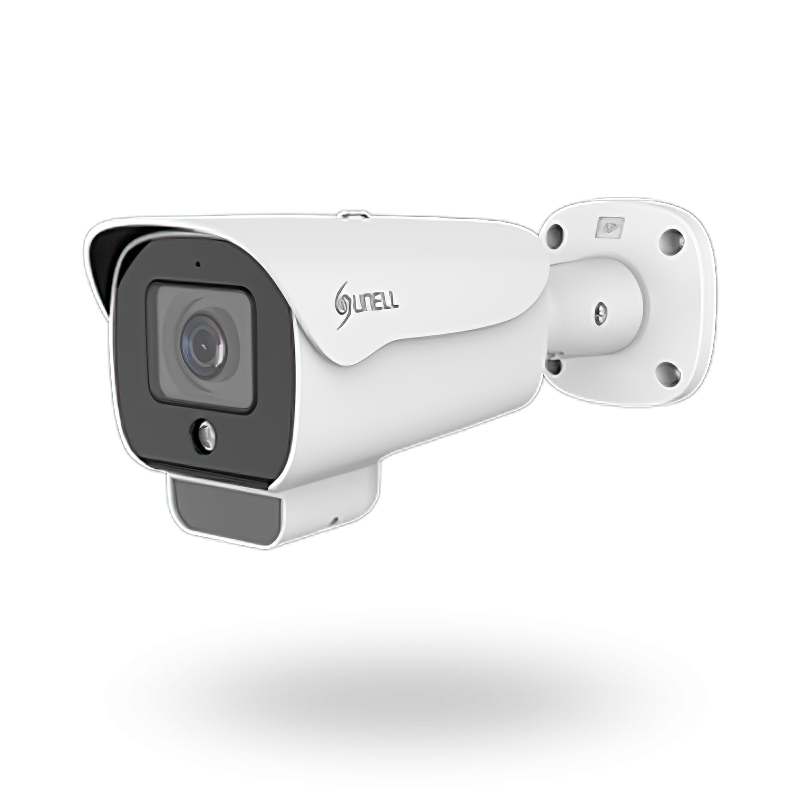

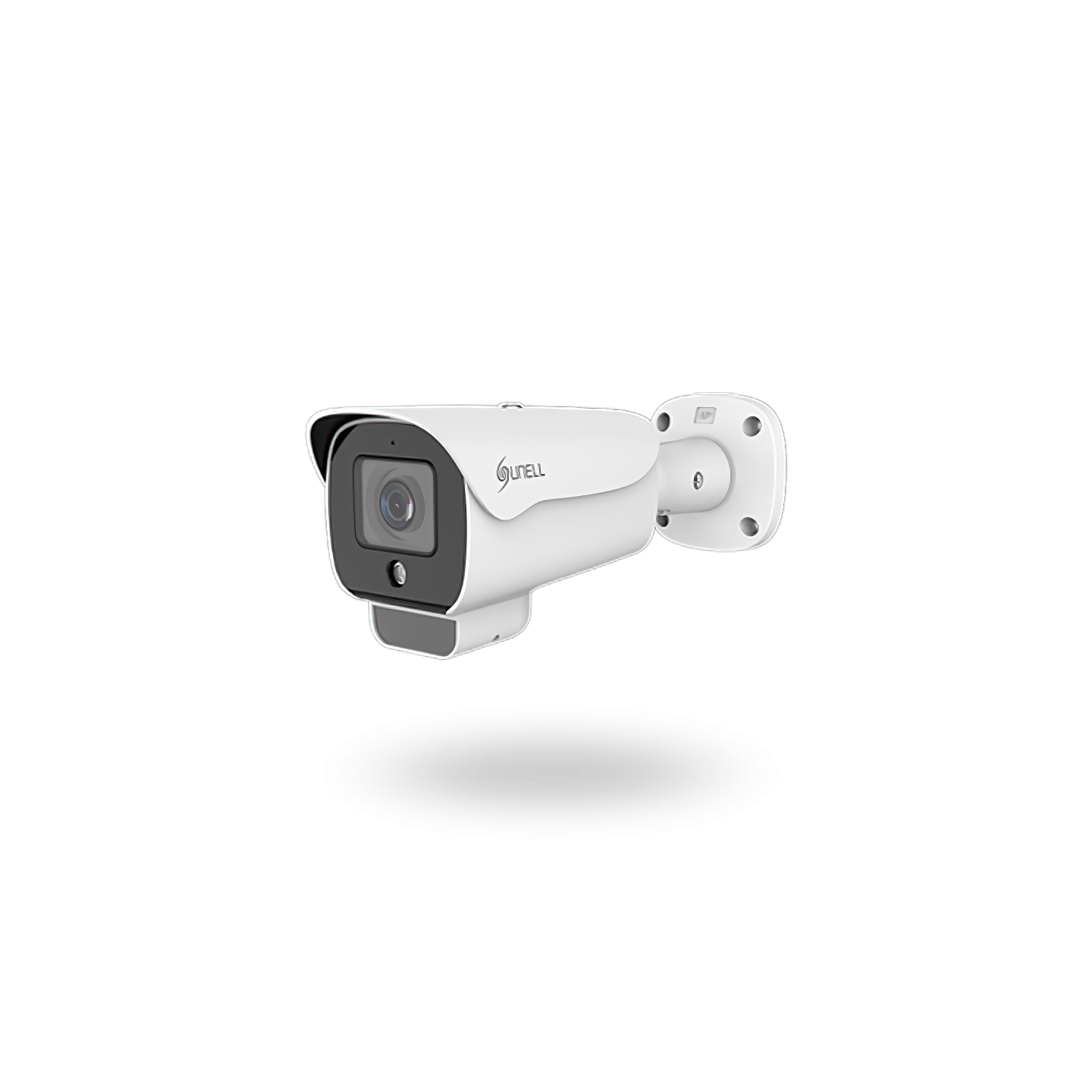

SUNELL SN-IPR8040CBAA-Z
Cámara IP IR de disuasión activa de 4MP, IR 40m, IP66, PoE
- CMOS de barrido progresivo de 1/2,8"
- Máx. 4MP (2592×1520) @25/30fps de resolución
- WDR, 3D DNR, ROI, HLC, BLC, Desempañado
- Admite la detección y captura de rostros, humanos y vehículos
- Detección inteligente: intrusión, cruce de una sola línea, cruce de doble línea, merodeo, camino equivocado, conteo de personas
- Micrófono y altavoz incorporados
- Admite luz estroboscópica y alarma de audio para advertir a los intrusos
- IR inteligente de hasta 40 m
- Entrada/salida de audio 1/1, entrada/salida de alarma 1/1
- Ranura micro SD integrada, IP66, PoE
Descarga
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Max. Resolution 4MP (2592×1520)
Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination Color: 0.03 Lux @ (F1.6, AGC ON) ,
B/W: 0 Lux @ (IR LED ON)
Day & Night IR cut filter
IR Distance Up to 40 m (131.2 ft)
IR On/Off Control Auto/Manual
Pan/Tilt/Rotation
Range Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚
Lens
Lens Type Motorized focus
Iris Fixed Iris
Focal Length 2.7 ~ 13.5 mm
F Number F1.6
Angle of View H: 87.5° ~ 26°, V: 64.8° ~ 19.9°
Video
Streaming Capability 3 Streams
Stream/Frame Rate
Stream1: 2592×1520, 2560×1440, 2304×1296,
1920×1080, 1280×720 @ 25/30fps
Stream2: D1, VGA, 640×360, CIF, QVGA @ 25/30fps
Stream3: VGA, CIF, QVGA @ 25/30fps
Bit Rate Control CBR/VBR
Bit Rate
Stream1: 200kbps~12Mbps
Stream2: 100kbps~6Mbps
Stream3: 100kbps~3Mbps
Region of Interest Off/On (8 Zone, Rectangle)
Image Adjustment Brightness, Sharpness, Contrast, Saturation adjustable
Aisle Mode Support
Mirror Support
White Balance Auto/Manual
Day/Night Setting Auto, Day, Night, Time
Smart IR Support
Noise Reduction 2D/3D DNR
Image Enhancement HLC, BLC, Defog
Wide Dynamic Range True WDR
S/N Ratio 55dB
Motion Detection Support
Privacy Masking Support
Smart Function
Multi-Object
Detection Supports face, human, vehicle detection and capture
Smart Events
Intrusion, Single line crossing, Double line crossing,
Loitering, Wrong way, People counting
Support alarm triggering by specified target types
(human and vehicle)
Smart Alarm When an alarm is triggered, active strobe light and
audible to warn intruders off.
Audio
Compression G.711, RAW_PCM
Bit Rate 8kbps, 16kps, 64kbps
Network
Protocols
IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP,
RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,
UPnP, FTP, ARP, SNMP, TLS/SSL
Interoperability ONVIF, SDK, CGI
Streaming Method Unicast
Max. User Access 10 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Language English, Chinese, Polish, Italian, Portuguese, Spanish,
Russian, French, Czech, Hungarian. Default: English
Interface
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch Input, 1ch Output
Built-in Microphone Yes
Built-in Speaker Yes
Alarm Interface 1ch Input, 1ch Output
Reset Button Support
SD Card slot Built-in, up to 256GB
Electrical
Power Supply DC12V (-15%~+25%)/POE (IEEE 802.3af)
Power Consumption Max 10.5 W
Operating
Temperature -40°C ~ 55°C (-40°F ~ 131°F )
Operating Humidity Less than 90% RH
Ingress Protection IP66
Certifications CE/FCC
Casing Metal
Dimensions 264.5 × 82.7 × 80.3 mm (10.41" × 3.56" × 3.16")
Net Weight 0.83 kg (1.83 lb)
